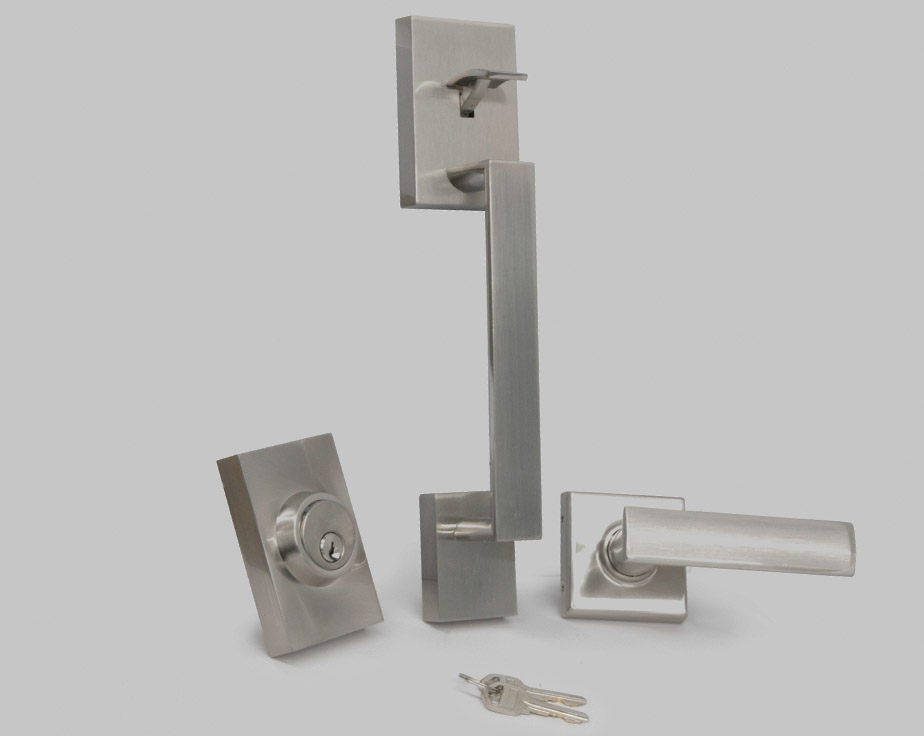

Century Single Cylinder Entry Door Handleset with Interior Lever

Available in the following finishes:  Satin Nickel and Black Matte

SPECIFICATIONS:

• Fits standard door preparation
• Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
• Latch: Works for both 2 3/8″ (60mm) and 2 3/4″ (70mm) backsets
• Bore Hole: 2 1/8″(54 mm)
• Cross Bore: 1″(25 mm)
• Projection: 3″
• Interior Handle Style: Lever (straight shape)
• Locking mechanism: Tubular Lock
• Lock Type: Single Cylinder
• 2 keys are included
• Includes all required hardware for complete installation
• Easy installation with only a Phillips screwdriver

Available in the following functions: Single Door Handleset and Double Doors Handleset.

Single Door Handleset is locked/unlocked with a key from the exterior and locked/unlocked from the inside of the home with a thumbturn when there is only one entrance door in the house.

Double Doors Handleset: If you have a DOUBLE ENTRY DOORS you need to order two handlesets: One is for the active side (Single Door) and one for inactive side (Dummy Door).

Dummy Door Handleset is essentially identical as an active set in the way they are made. They have all of the same hardware except latches. Dummy cylinder is non-operating (blank) and is mounted on the outside of the door. Thumbpiece is also non-operating.

HANDLESETS ARE NOT SOLD AS A PAIRS for double doors.

Trying to match old handleset mounting holes? Check out our Replacement Handleset Guide (Link is down below)

Replacing Entry Door Handleset (how to take the proper measurements)-PDF

Century-Handleset-Measurements-PDF
