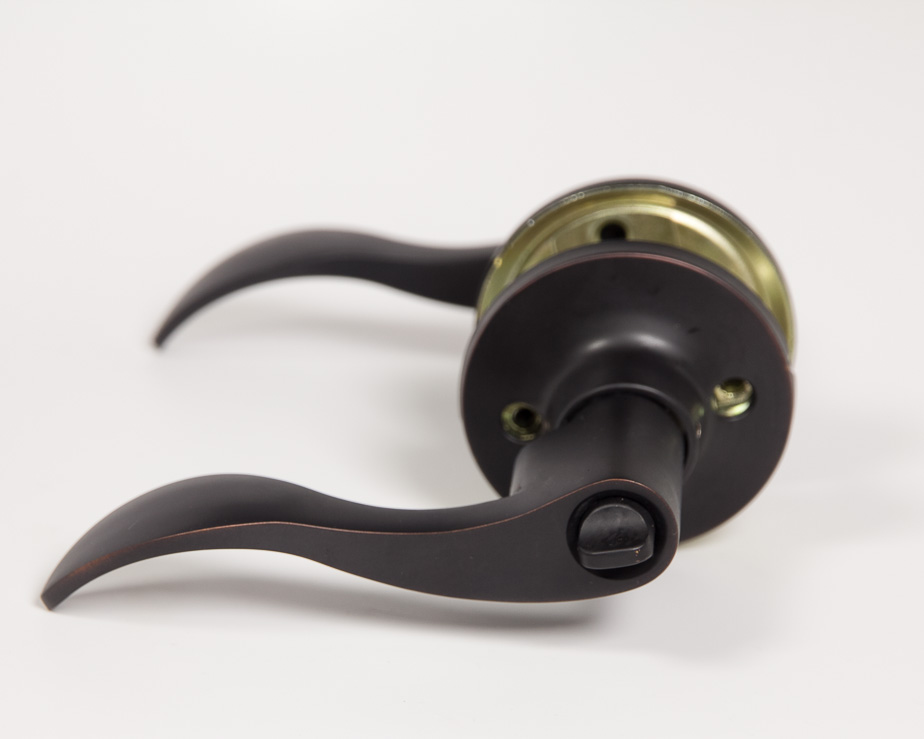

Classic Door Handle Lever Set Round Rosette

How to install interior door lever

How to install and reverse privacy door handles

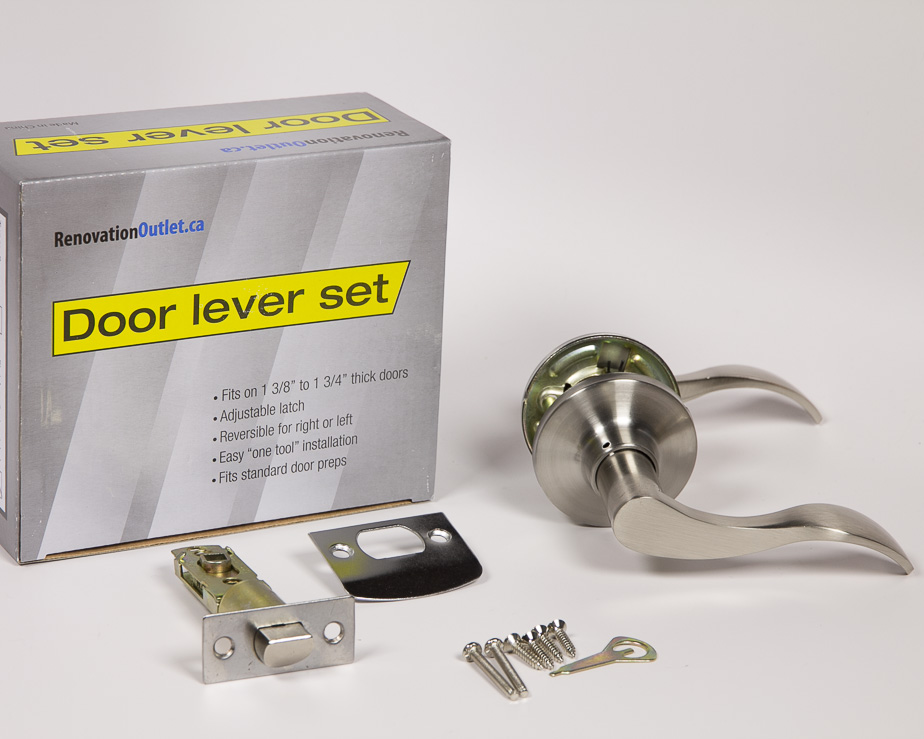

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

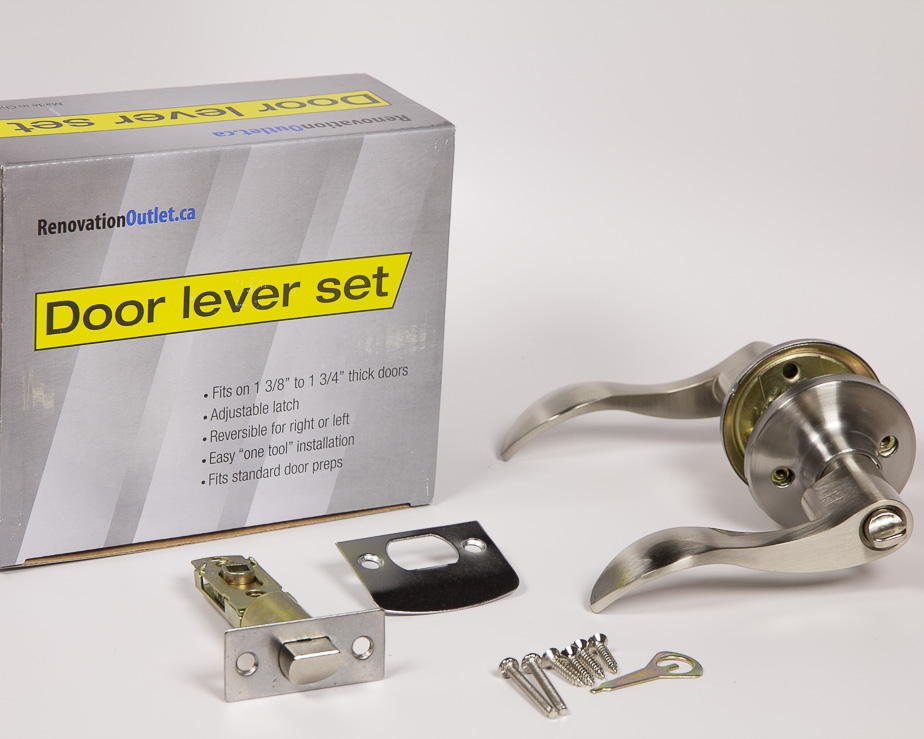

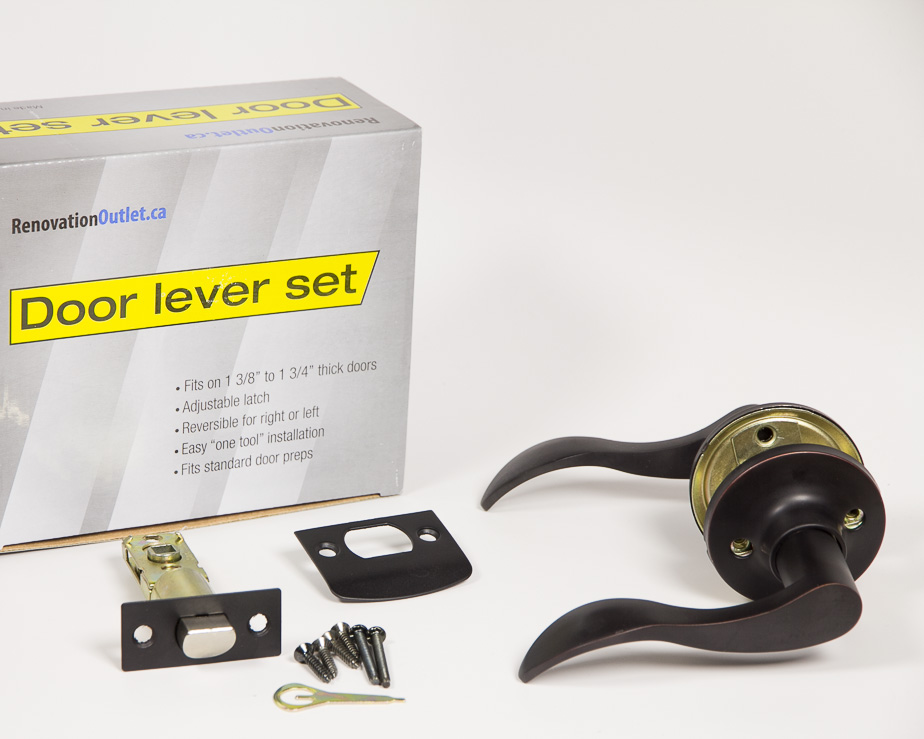

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).

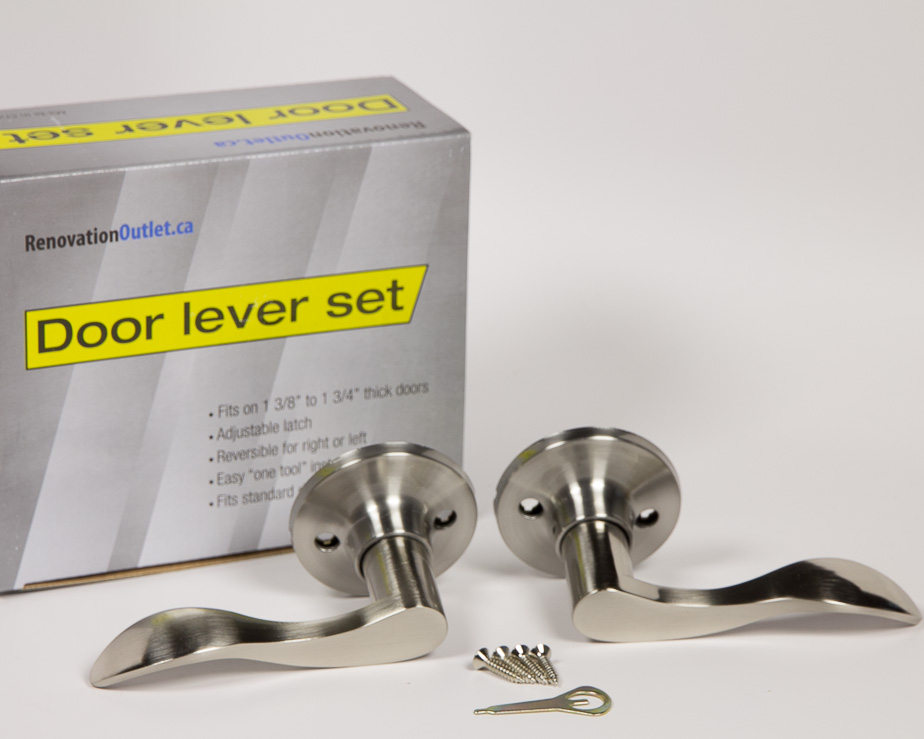

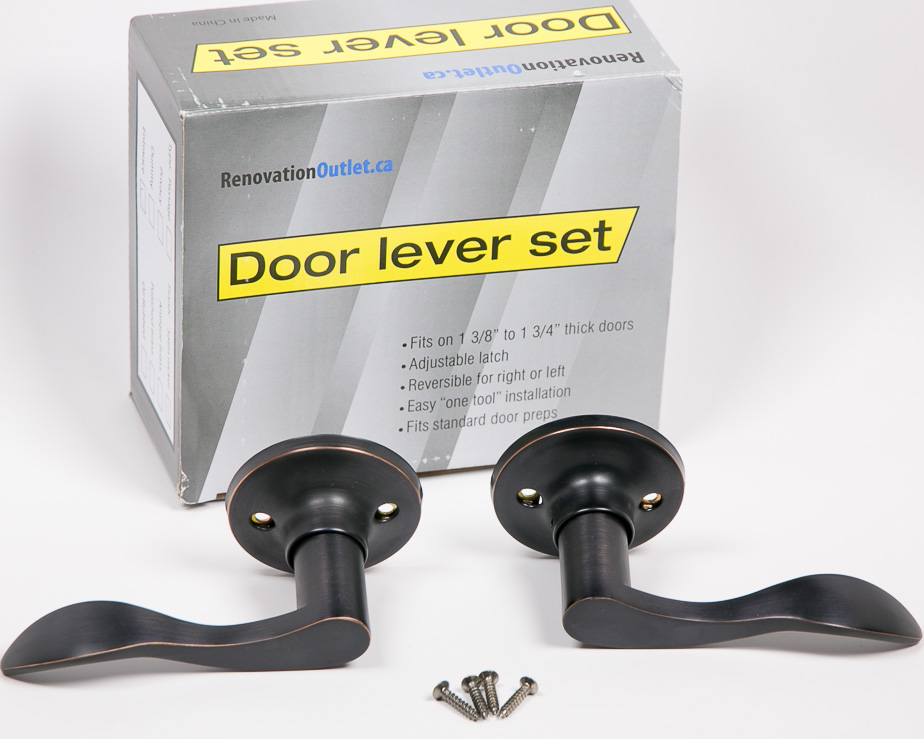

Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as set of 2 handles.

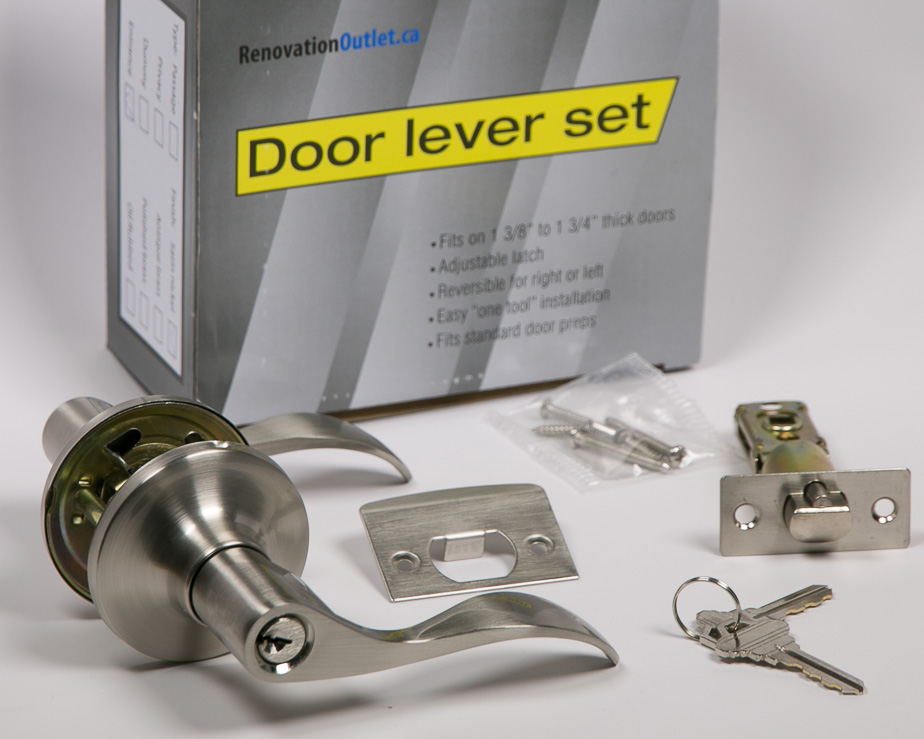

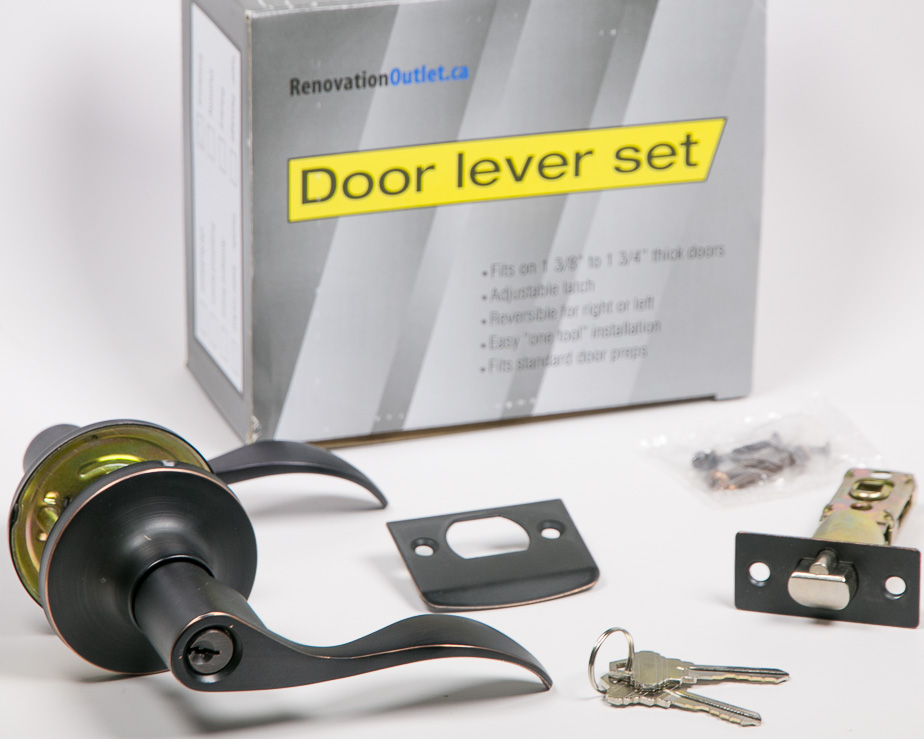

Keyed – for use on interior or exterior doors where strong privacy locking function is required (e.g. office). Can be opened outside only with a key.

Available in following finishes: Satin Nickel, Oil Rubbed Bronze

• Fits all standard door preps
• Door Thickness: 1 3/8” (35mm) to 1 3/4” (45mm)
• Solid Zinc construction
• Latch has square corner rectangular faceplate: 1″ (25mm) x 2 1/4″ (57mm)
• Backset is adjustable: 2 3/8″ (60mm) and 2 3/4″ (70mm)
• Bore Hole: 2 1/8″ (54mm)
• Cross Bore: 1″ (25mm)

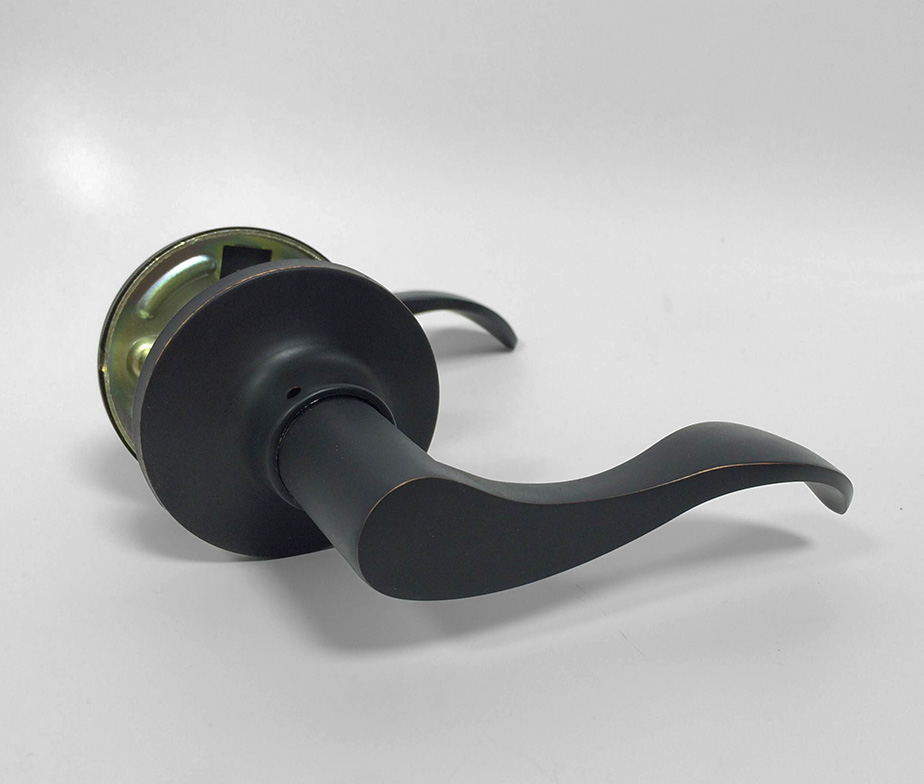

• Shape: Wave
• Turn Button for privacy function
• Reversible: easy to reverse left or right door swing
• The round rosette diameter: 2 1/2″ (63mm)
• Grip length: 4 1/2″ (114mm)

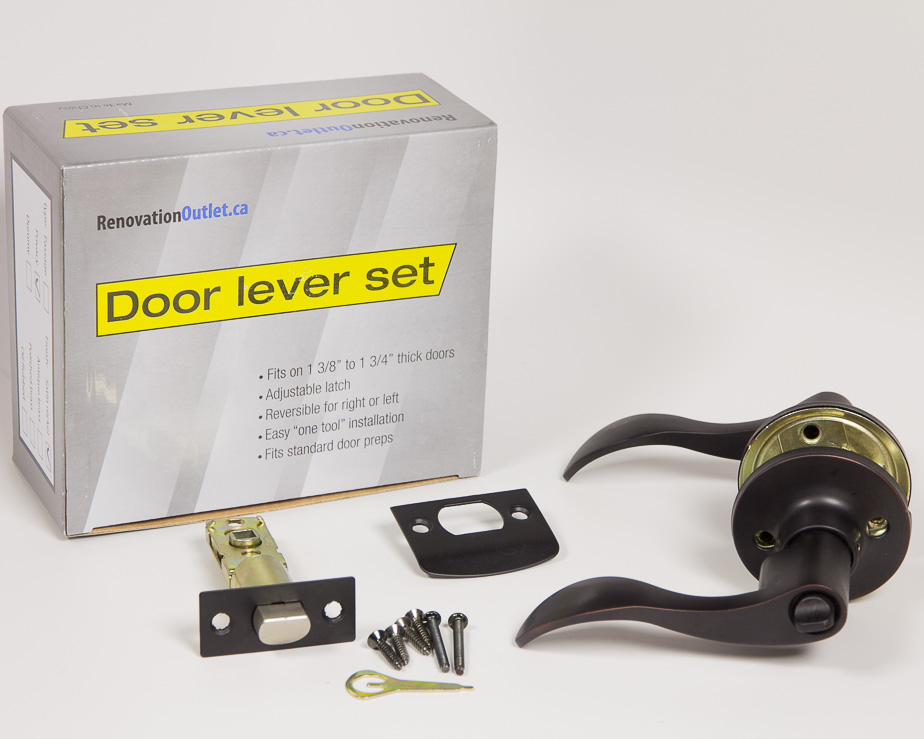

• Includes all required hardware for complete installation

Stand OUTSIDE of your door. Notice where the hinges are.

• If the hinges are on the LEFT, you will need a LEFT handed door handle.
• If the hinges are on the RIGHT, you will need a RIGHT handed door handle.
