Halifax Door Handle Lever Set Concealed Screws

Product demonstration: Halifax-Style Door Handles with Round Rose

Concealed Screws: This Halifax style round rose handles install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door, and the hardware you’ve chosen for it—seamlessly co-existing.

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

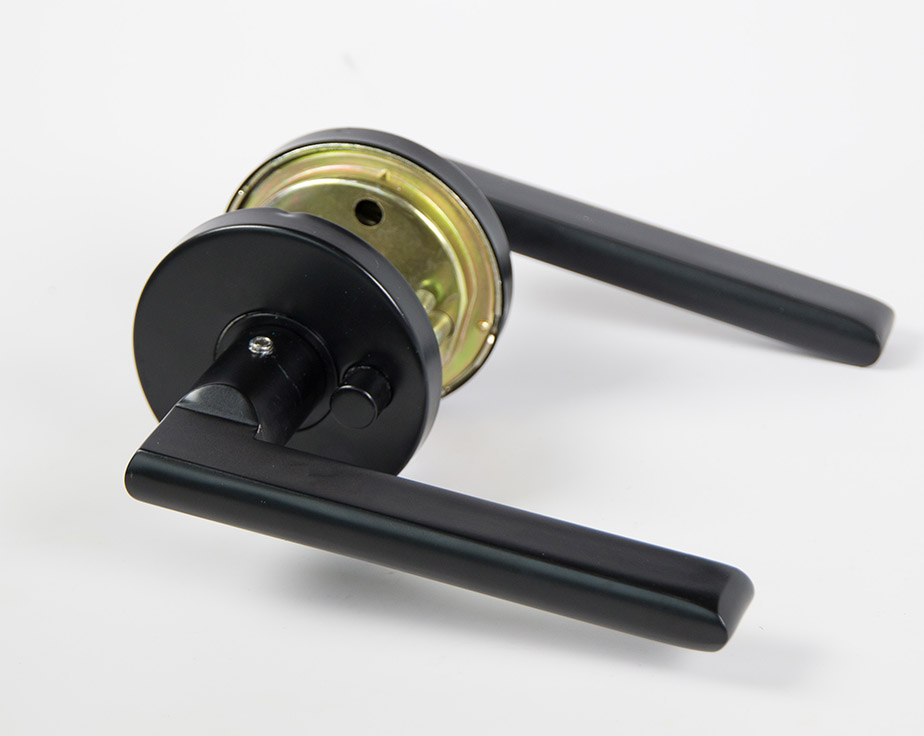

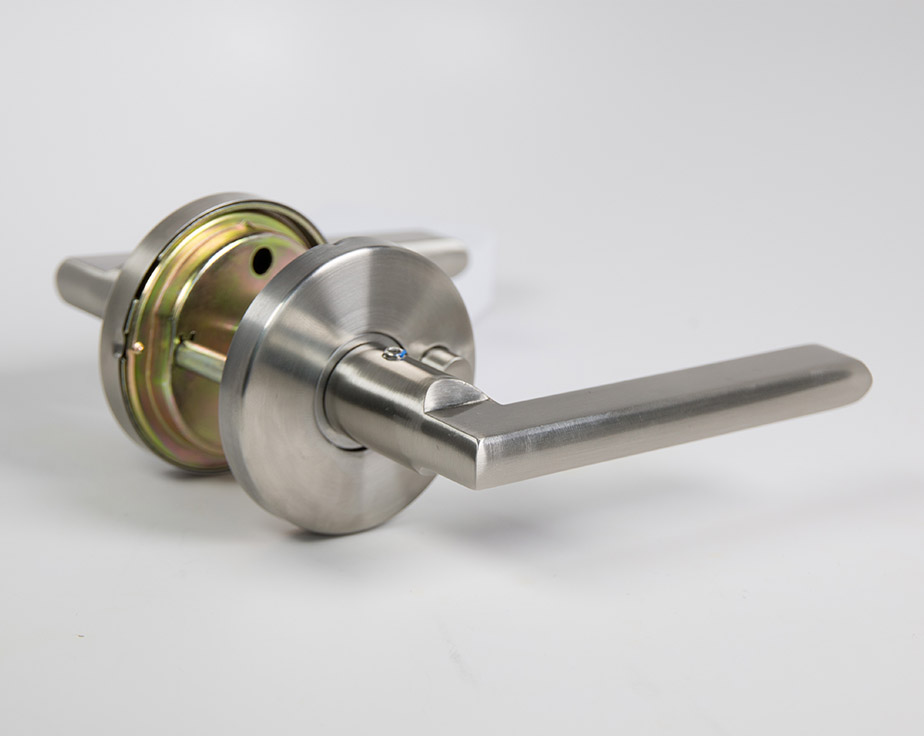

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).

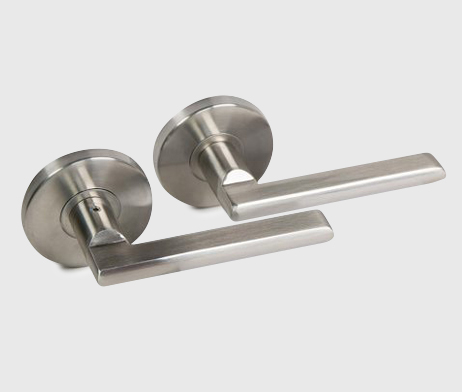

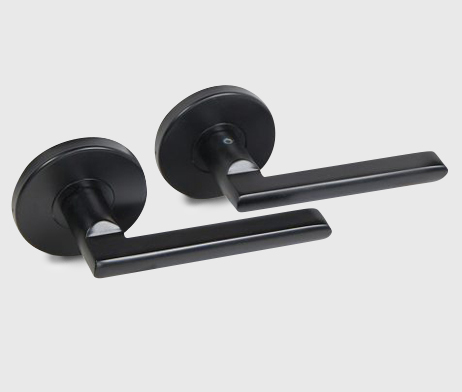

Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as a set of 2 handles.

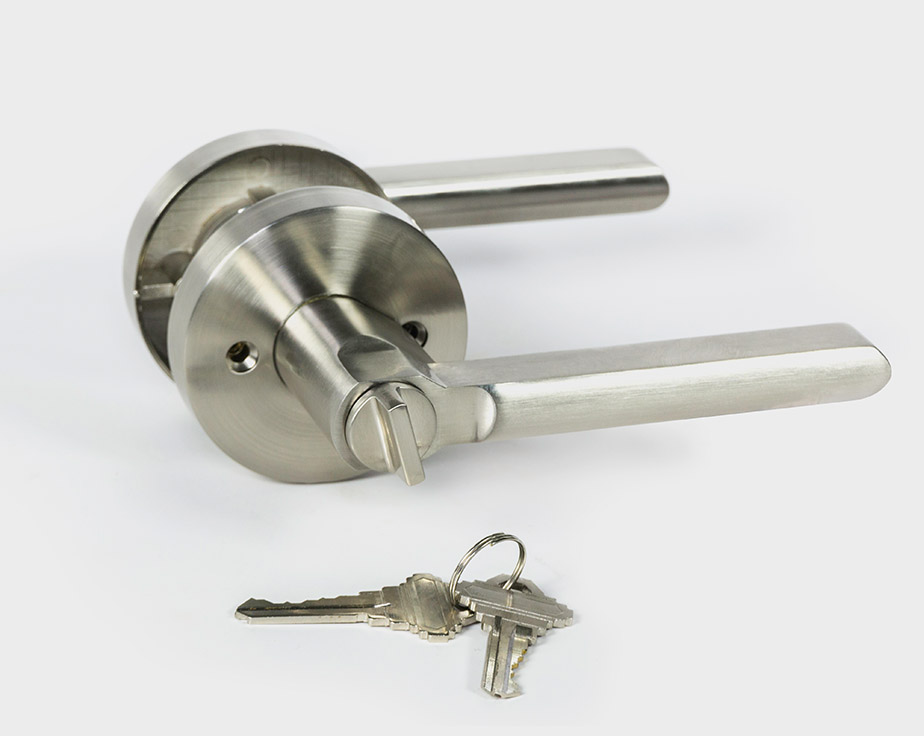

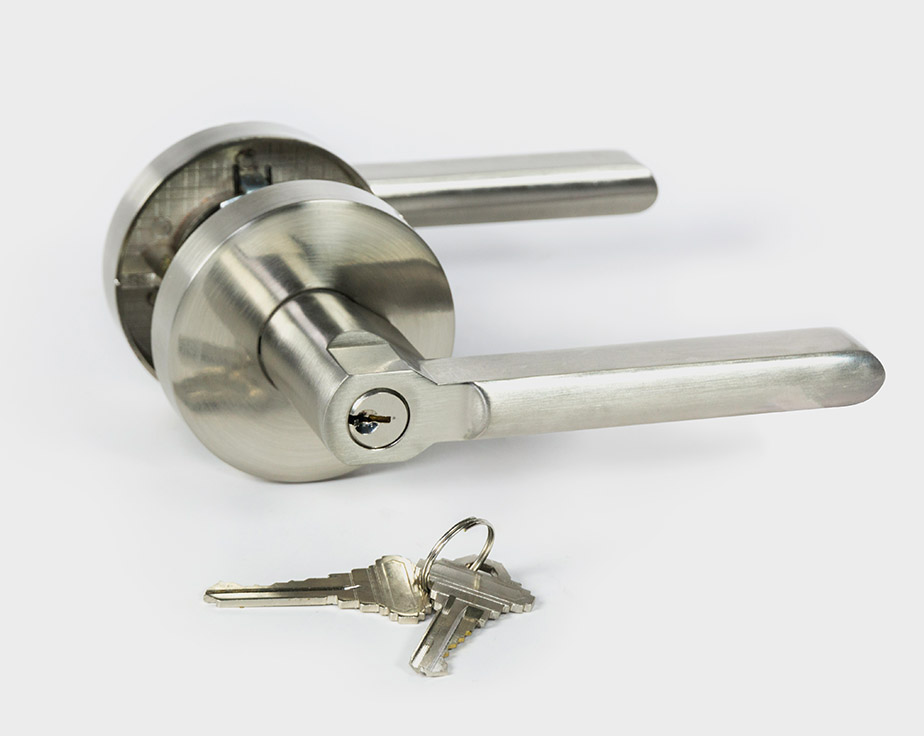

Keyed – for use on interior or exterior doors where strong privacy locking function is required (e.g. office). Can be opened outside only with a key. Please NOTE that Keyed Privacy set comes with screws exposed on interior.

Keyed Set available in 2 variations: Keyed Different and Keyed Alike

Keyed Different – locks with Different Keys. Each lock has its own unique key and can not be open by the others keys from the same locks.

Keyed Alike – when all locks in a set can be opened with the same key. This option is beneficial when multiple locks are use by the same person so that only one key needs to be used.

Available in following finishes: Satin Nickel, Black

Features:

• Concealed screws on interior side of the rosette for passage, privacy, dummy (exterior rosette)
• Features an adjustable latch to fit all standard door preparations
• Solid Zinc Construction
• Push Button for privacy function
• Flush Head Mounting Screws
• Includes Square Corner Strike
• Installation guide is included

Specifications:

• Fits all standard door preps
• Door Thickness: 1 3/8″ (35mm) or 1 3/4″ (45mm)
• Latch has square corner rectangular faceplate: 1″ (25mm) x 2 1/4″ (57mm)
• Backset is adjustable: 2 3/8″ (60 mm) and 2 3/4″ (70mm)
• Bore Hole: 2 1/8″ (54mm)
• Cross Bore: 1″ (25mm)
• Handing: Reversible
• Grip Length: 4 3/4″ (120mm)
• The round rosette diameter: 2 1/2″ (65mm)
• Weight: 1.65 lb (750 g)
• Includes all required hardware for complete installation

Privacy Function:

The latch bolt can be locked by pushing the button on the inside rosette. The exterior side features a small pin hole to unlock the leverset from the outside. Emergency Egress Function: Allows you to simply turn the lever to exit the room.

Halifax Round PDF
