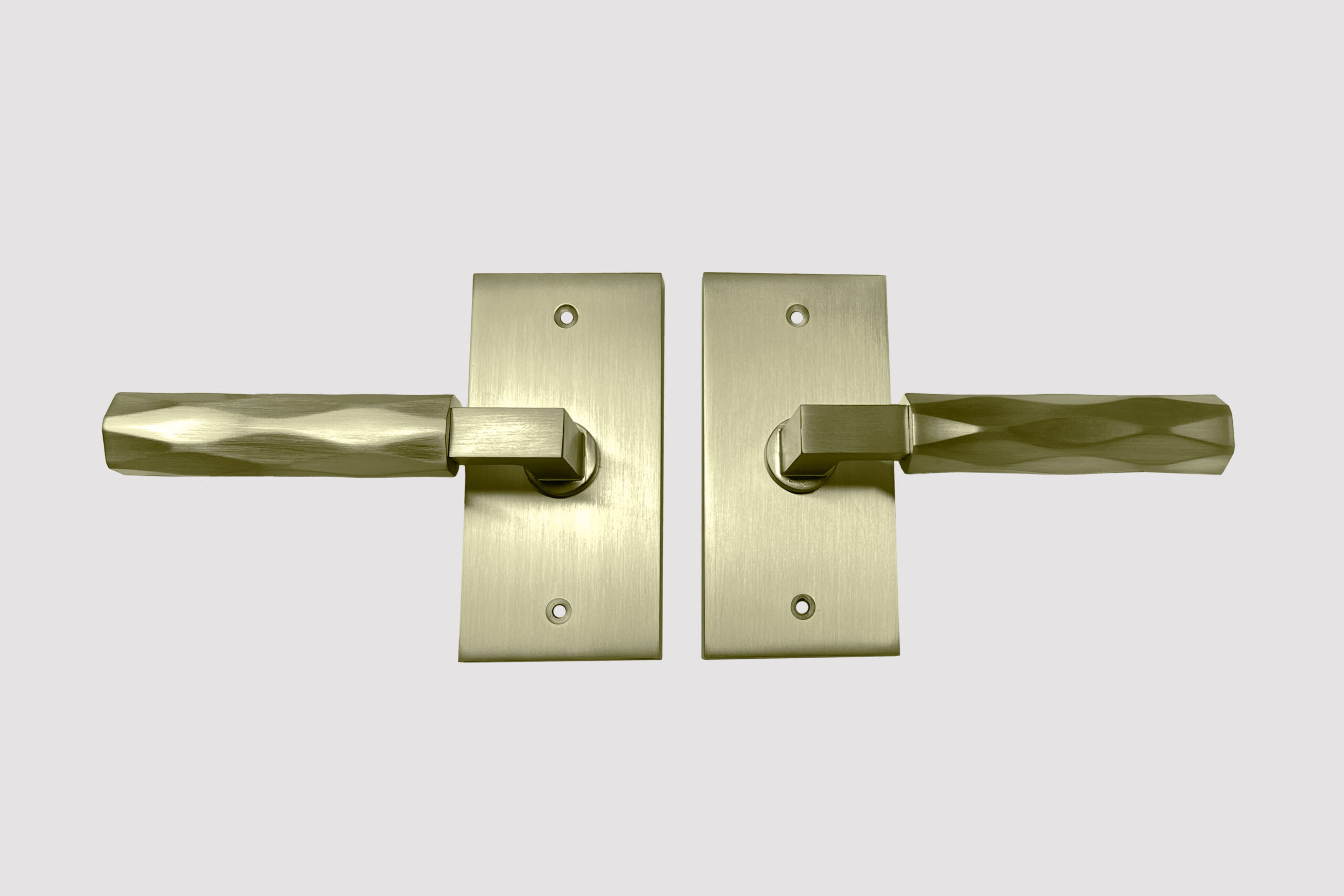

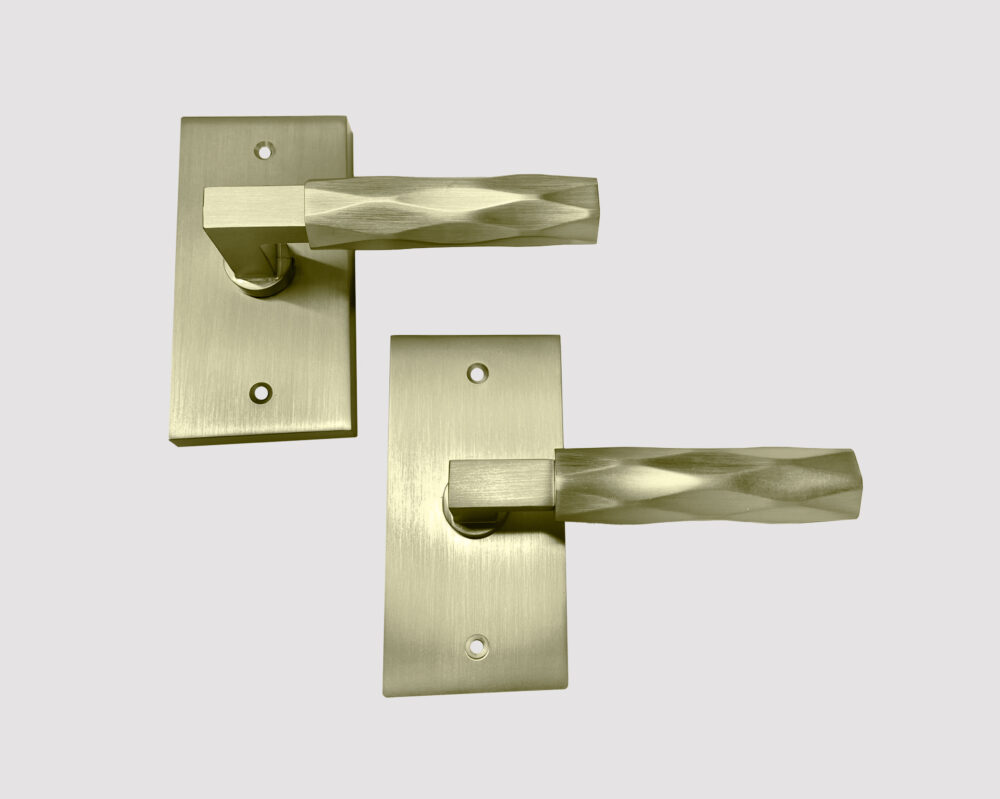

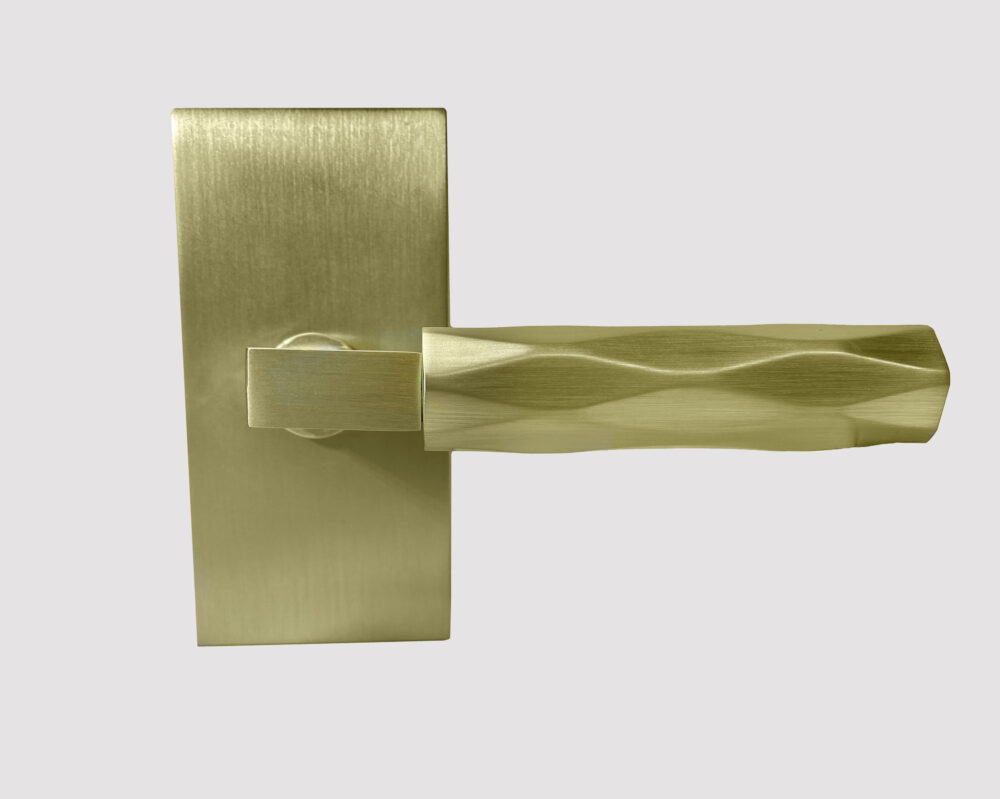

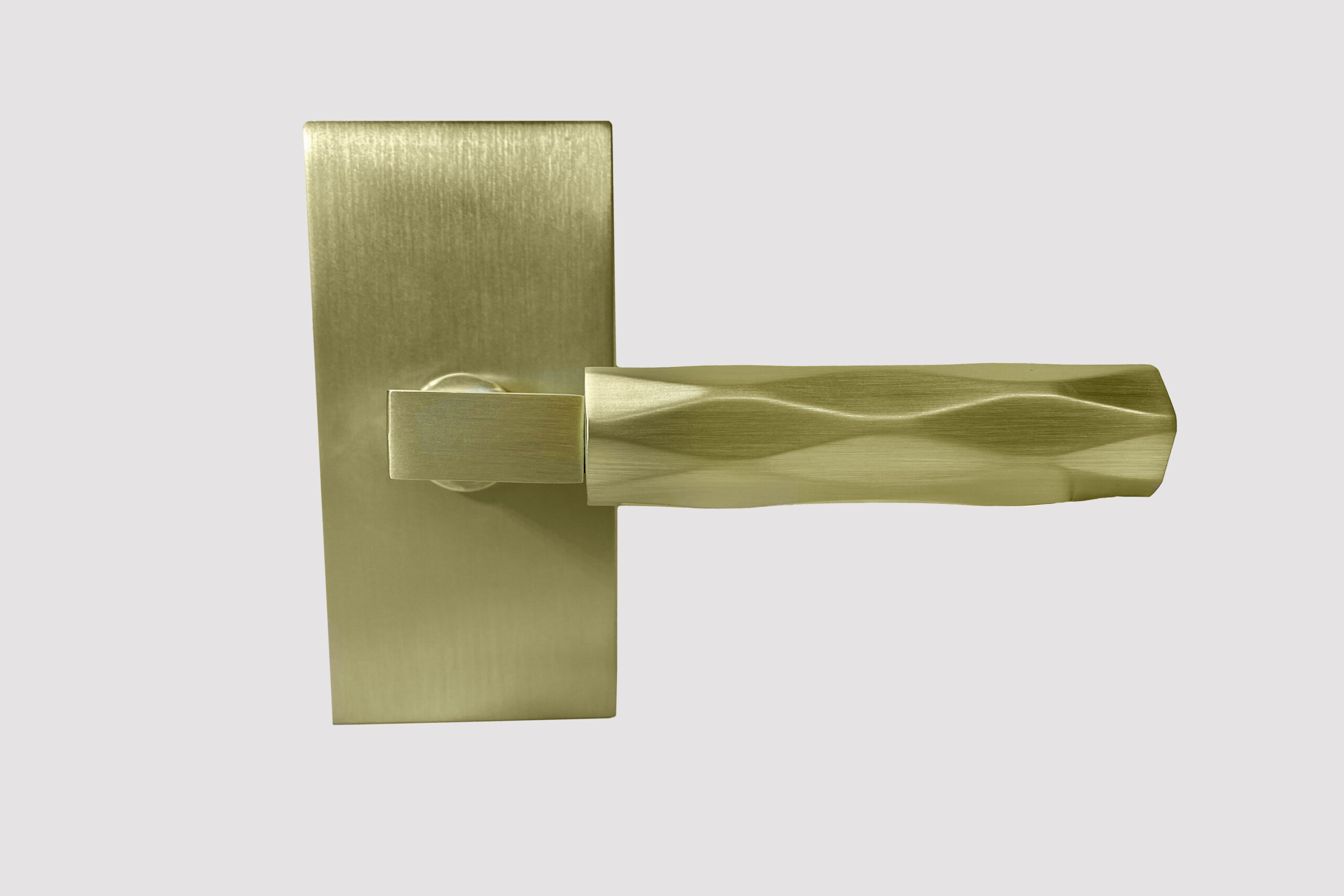

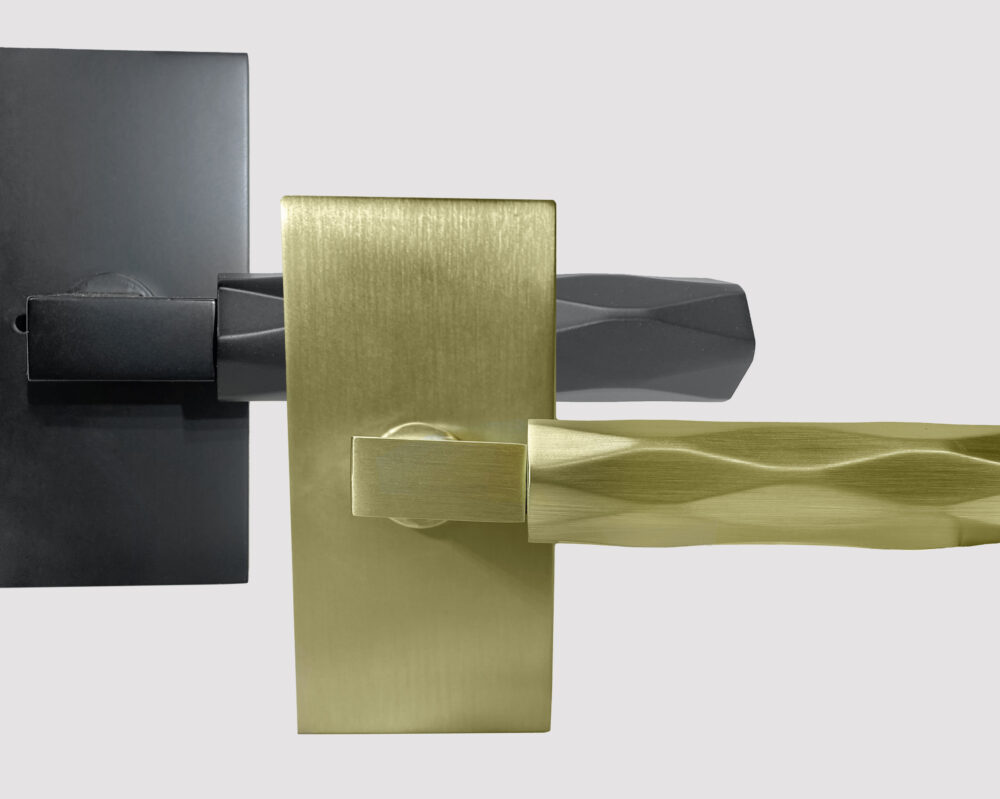

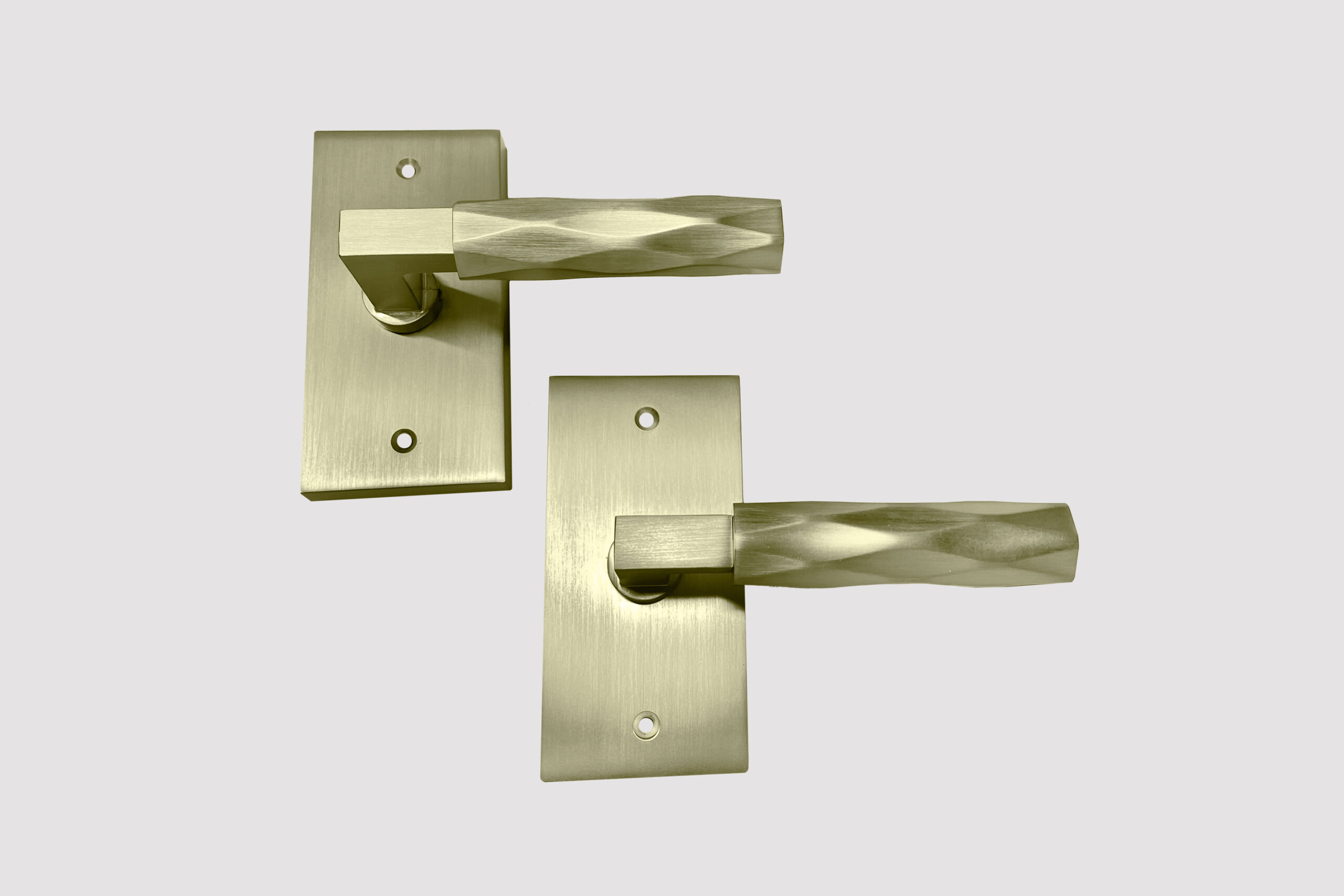

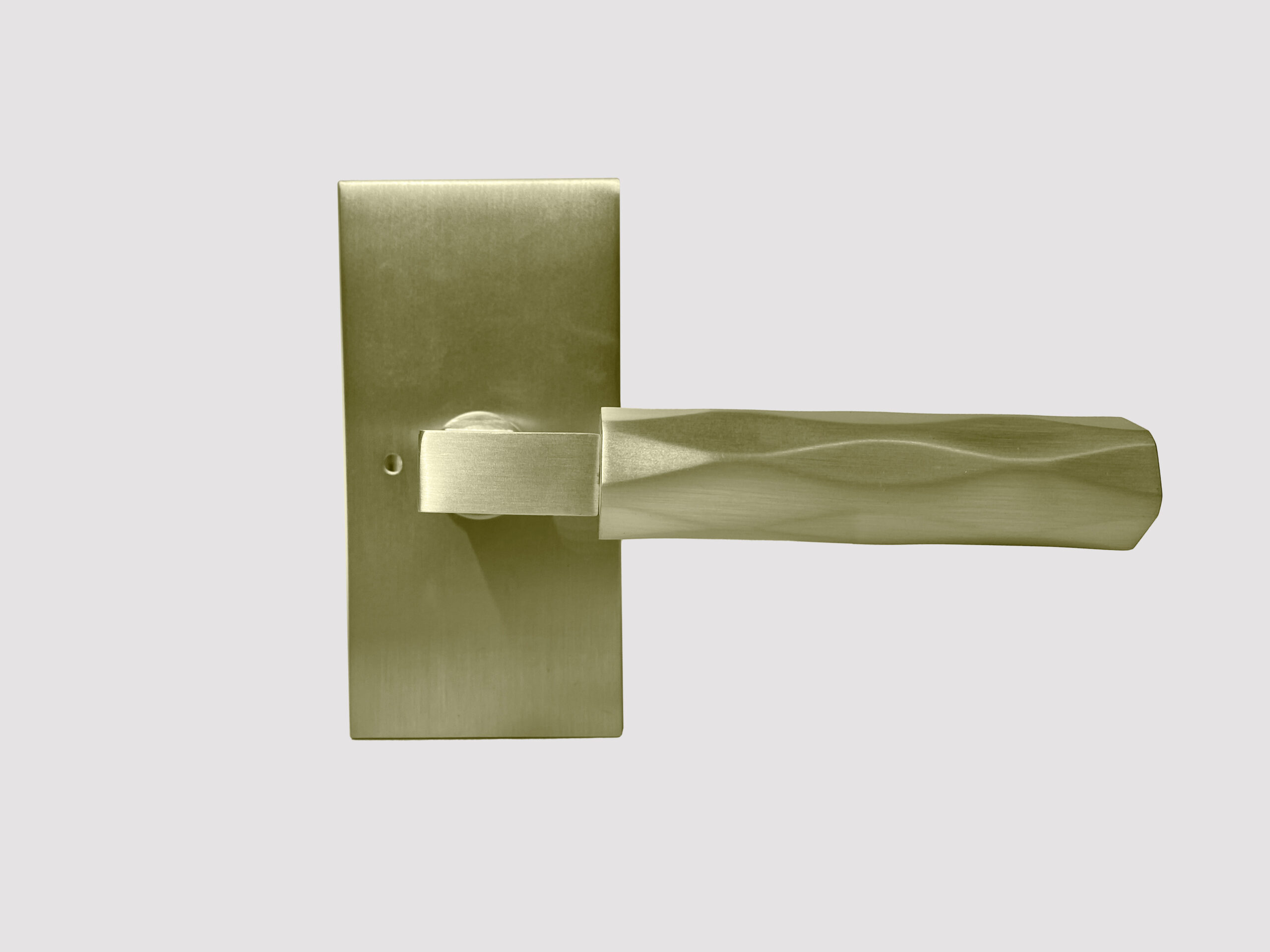

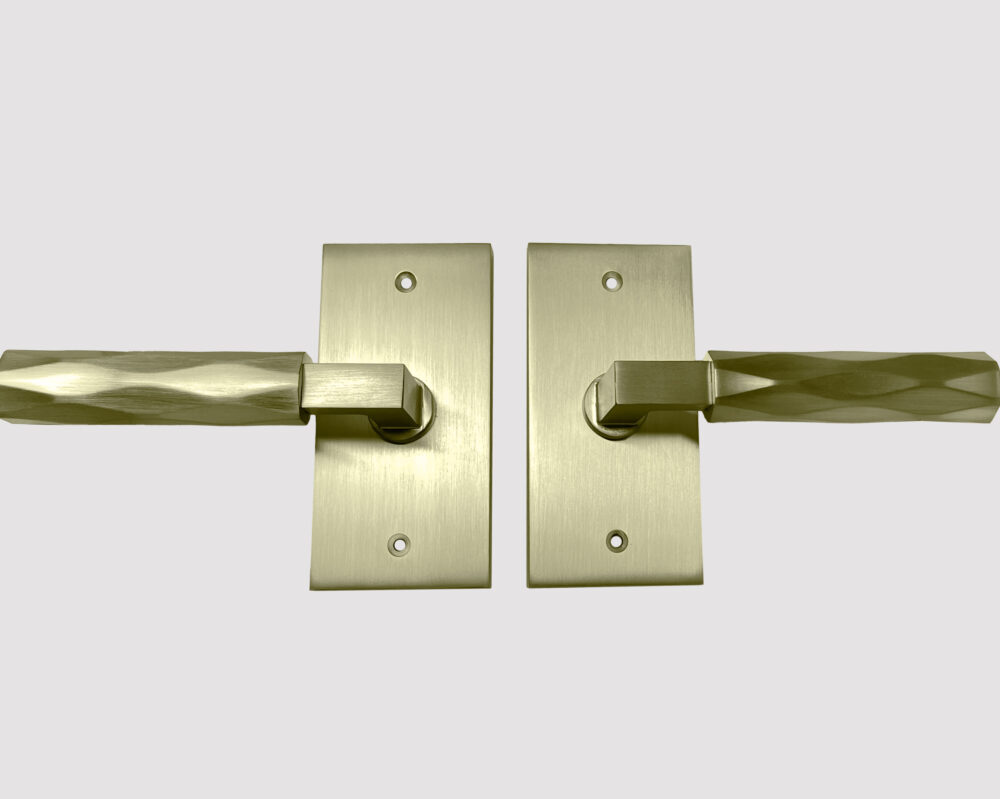

Diamond Backplate Door Handle Lever Set with Rectangular 5 inch Backplate Satin Brass / Black

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).
Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).
Dummy – require no door prep. Dummy handles are surface-mounted (e.g. closets). Comes as set of 2 handles.

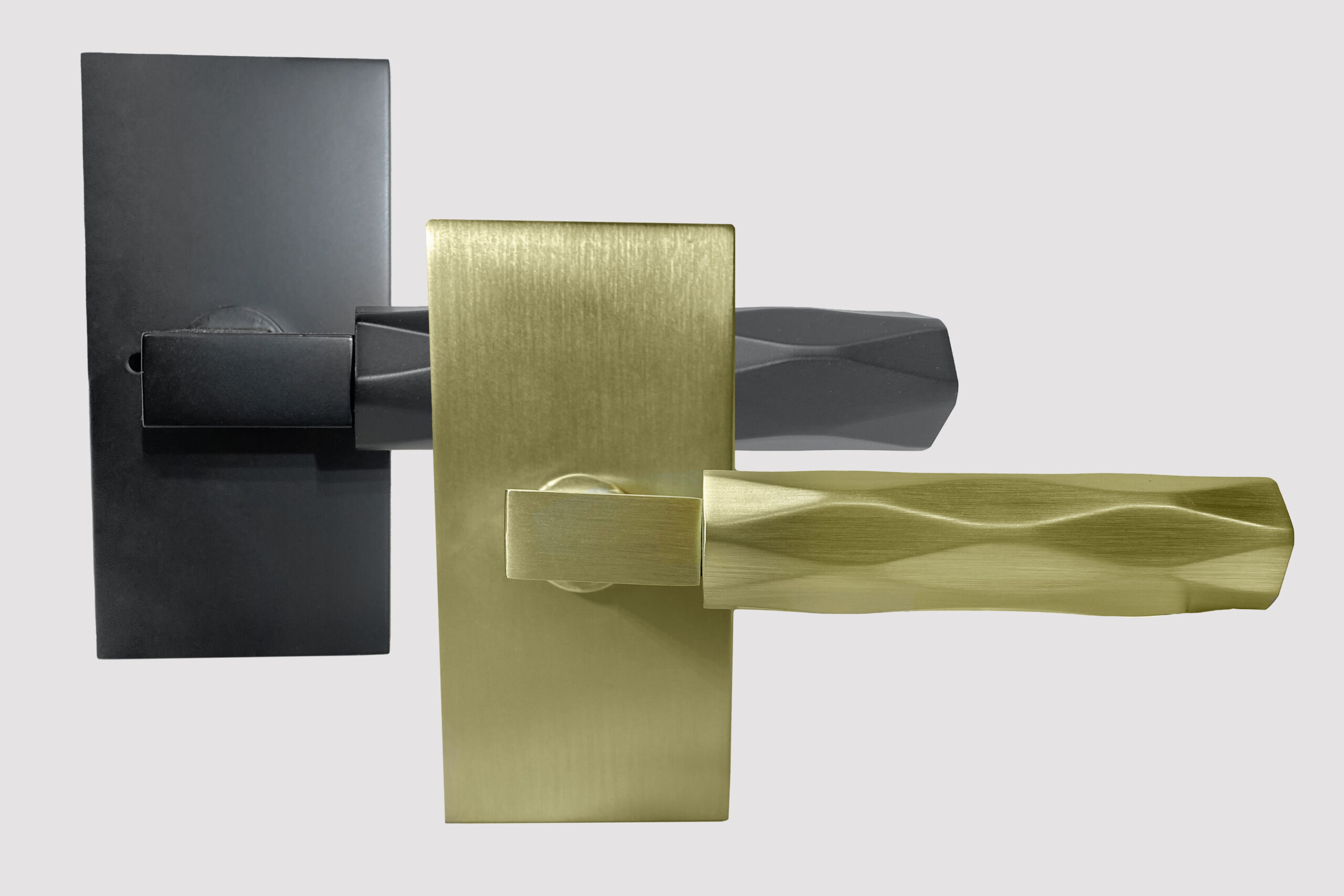

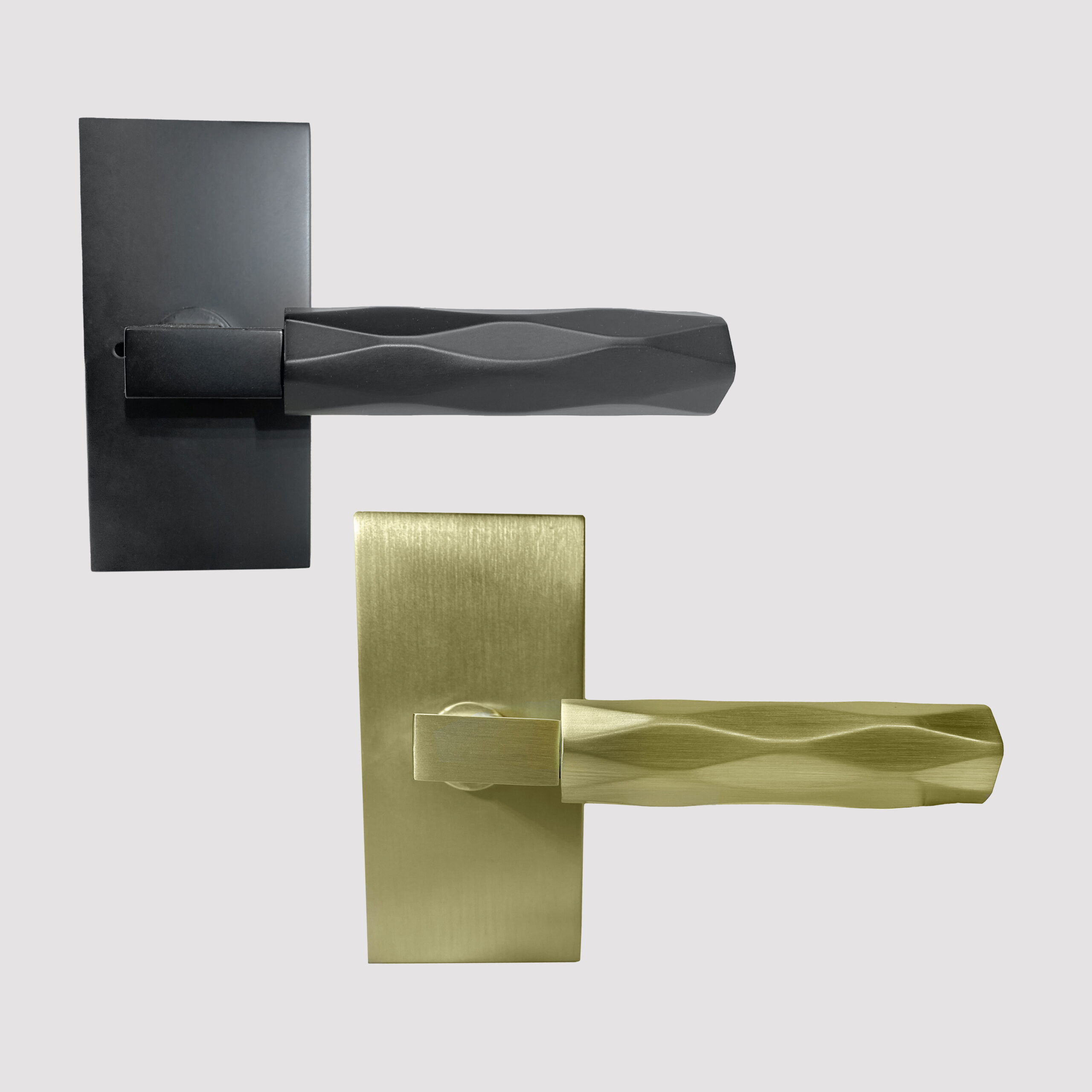

Available in following finishes:  Satin Brass, Black Matte

Features:

• Solid Zinc Construction

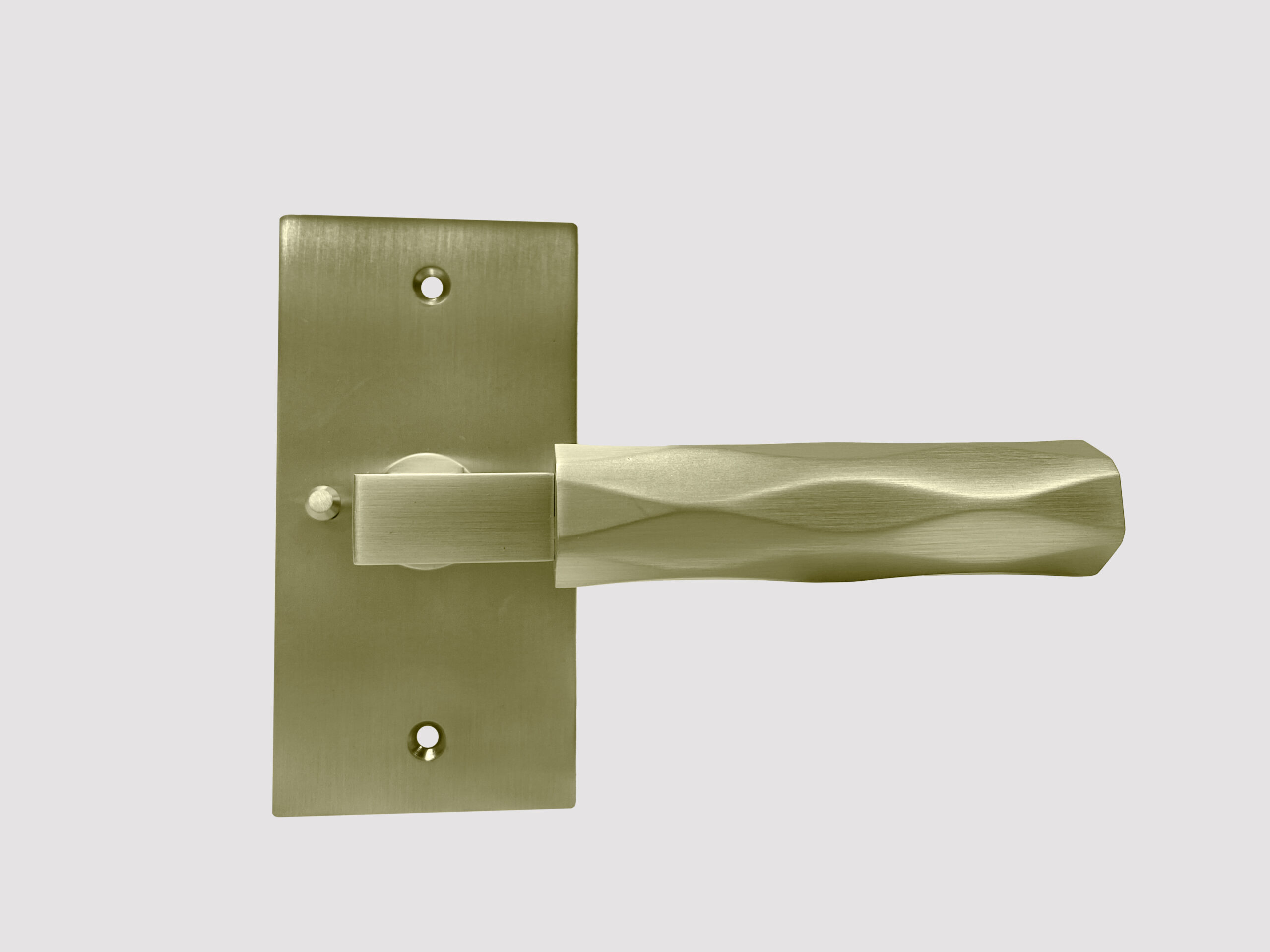

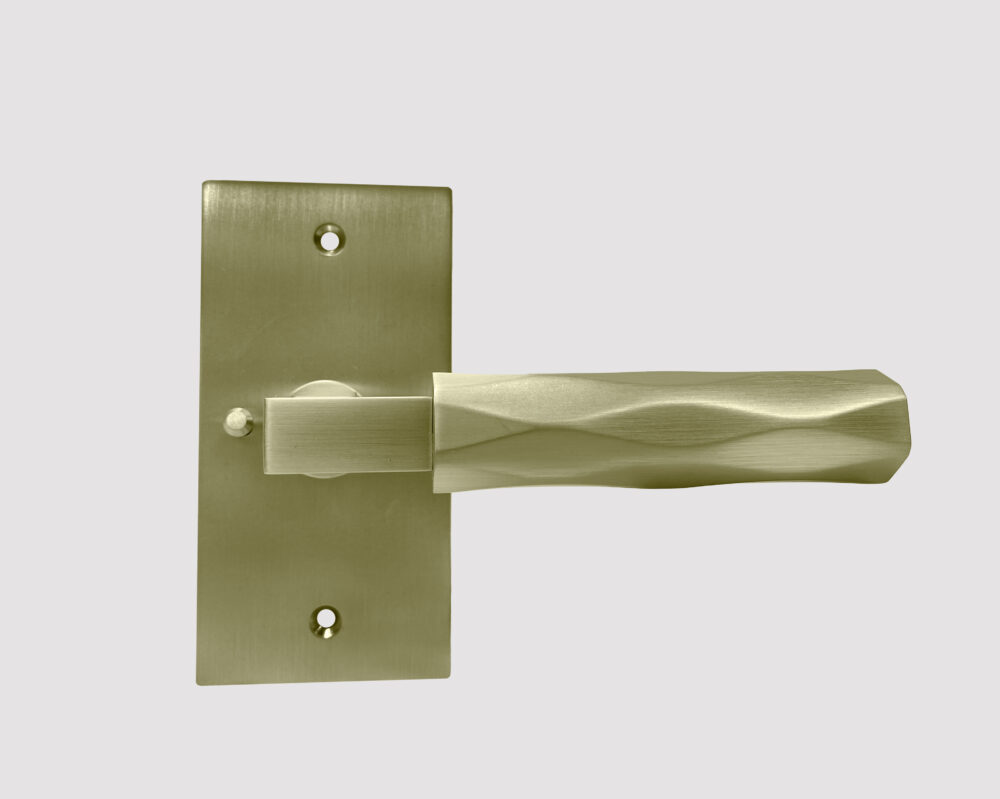

• Push Button Lock for privacy function
• Strengthened Springs Ensure that the Lever Stays Level Over Time
• Includes Square Corner Strike
• Includes all necessary operating parts and fastening hardware

Specifications:

• Fits to standard door preparation
• Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
• Latch has square corner rectangular faceplate:  1″(25 mm) x 2 1/4″(57 mm)
• Latch is non-adjustable – please choose a backset length at check-out
• Bore Hole: 2 1/8″(54 mm)
• Cross Bore: 1″(25 mm)
• Grip Length: 4 1/2″ (115 mm)
• The plate size: W: 2 1/2″ (65 mm) H: 5″ (127 mm)
• Projection: 2 1/2″ (65 mm)
• Weight: 2.31 lb. (1.05 kg)
• Includes all required hardware for complete installation

What is the Backset?

The backset on a door is the distance from the edge of the door to the center of the borehole in the door.
Here is an example:

Stand OUTSIDE of your door. Notice where the hinges are.

• If the hinges are on the LEFT, you will need a LEFT handed door handle.
• If the hinges are on the RIGHT, you will need a RIGHT handed door handle.
