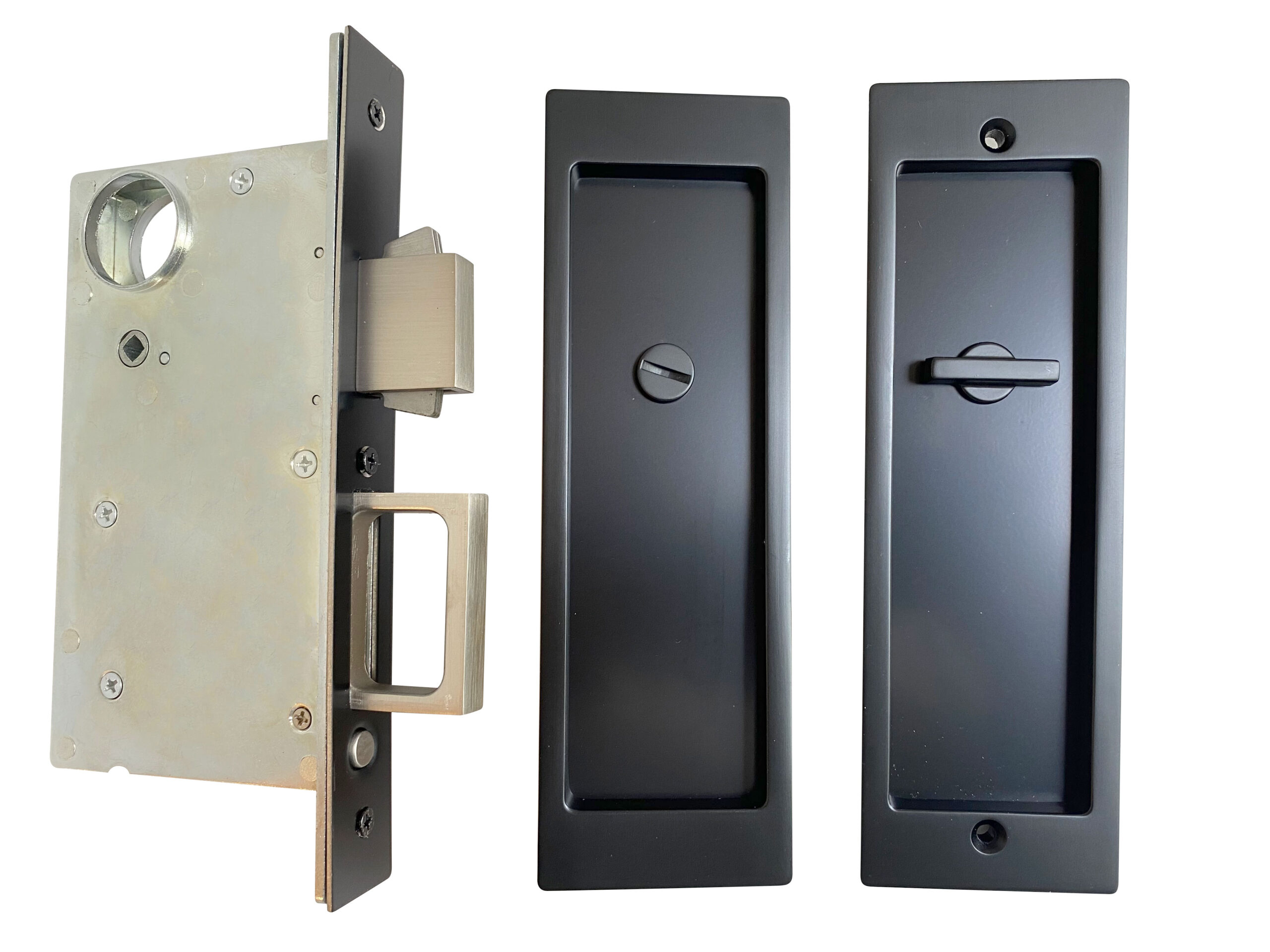

Pocket/sliding door flush lock with edge pull Satin Nickel/Black

FINISHES: Satin Nickel, Black, Satin Brass

AVAILABLE in Passage and Privacy functions

Description:

• For use in residential and commercial applications
• Mortise lock
• Lock case includes an edge pull that pops out with push button located at the bottom
• Door thickness: 1-3/8″ to 1-3/4″
• Compatible with left-hand and right-hand doors
• Mounting hardware is included

Dimensions:

• Width: 2-3/8″ (60 mm)
• Height: 7-1/2″ (190 mm)
• Backset: 2-1/2″ (64 mm)

Passage flush pull for sliding doors has no locking function. These pulls are ideal for hallways or closets where a lock is not necessary.

Privacy flush pull for sliding doors is locked from the interior using a thumb-turn lock on the interior pull and with a coin turn to unlock the door from the outside. Privacy pulls are ideal for bathrooms, bedrooms, or anywhere a locking door is desired.

Flush lock with edge pull PDF

scheme_26_09_22 (1)
