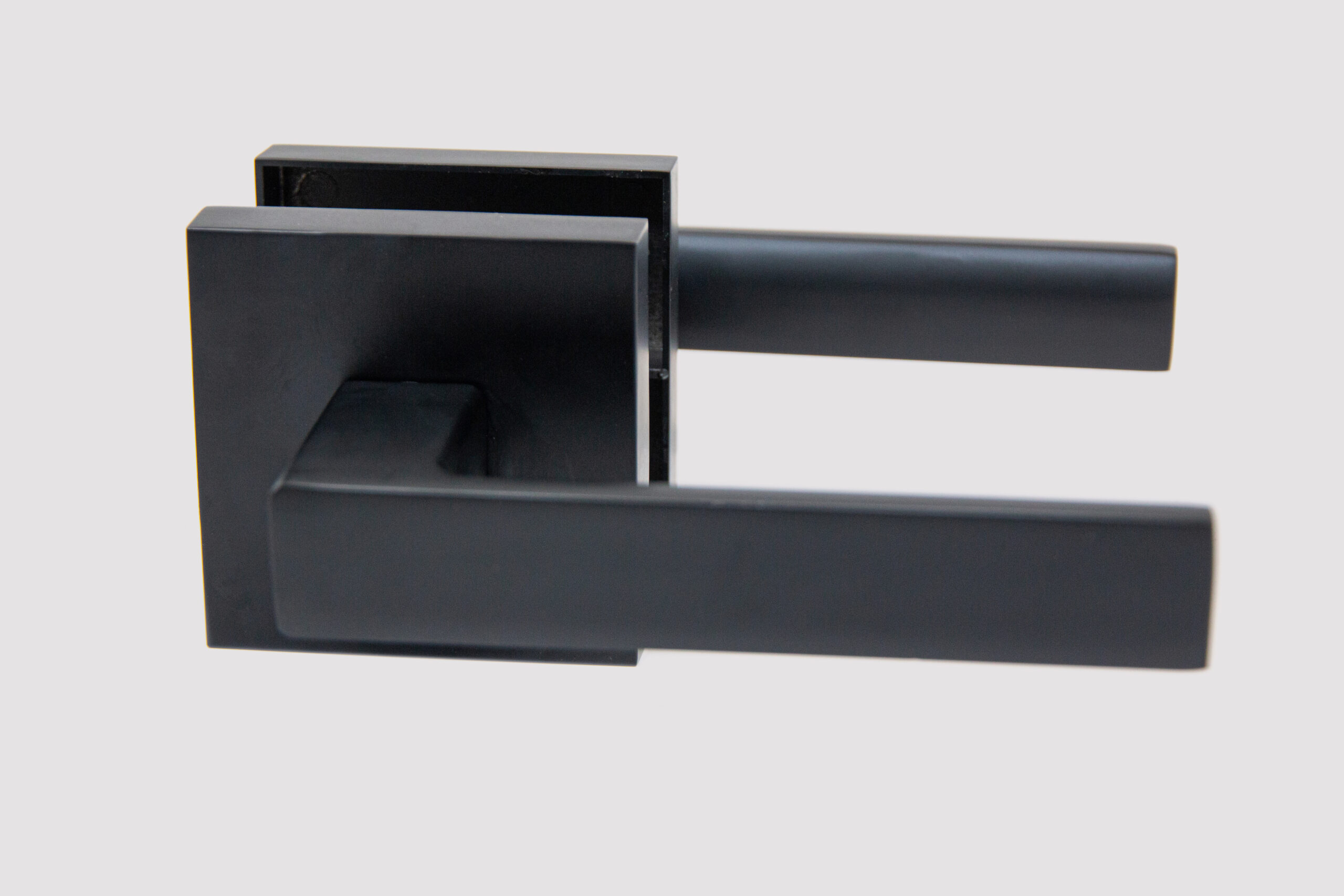

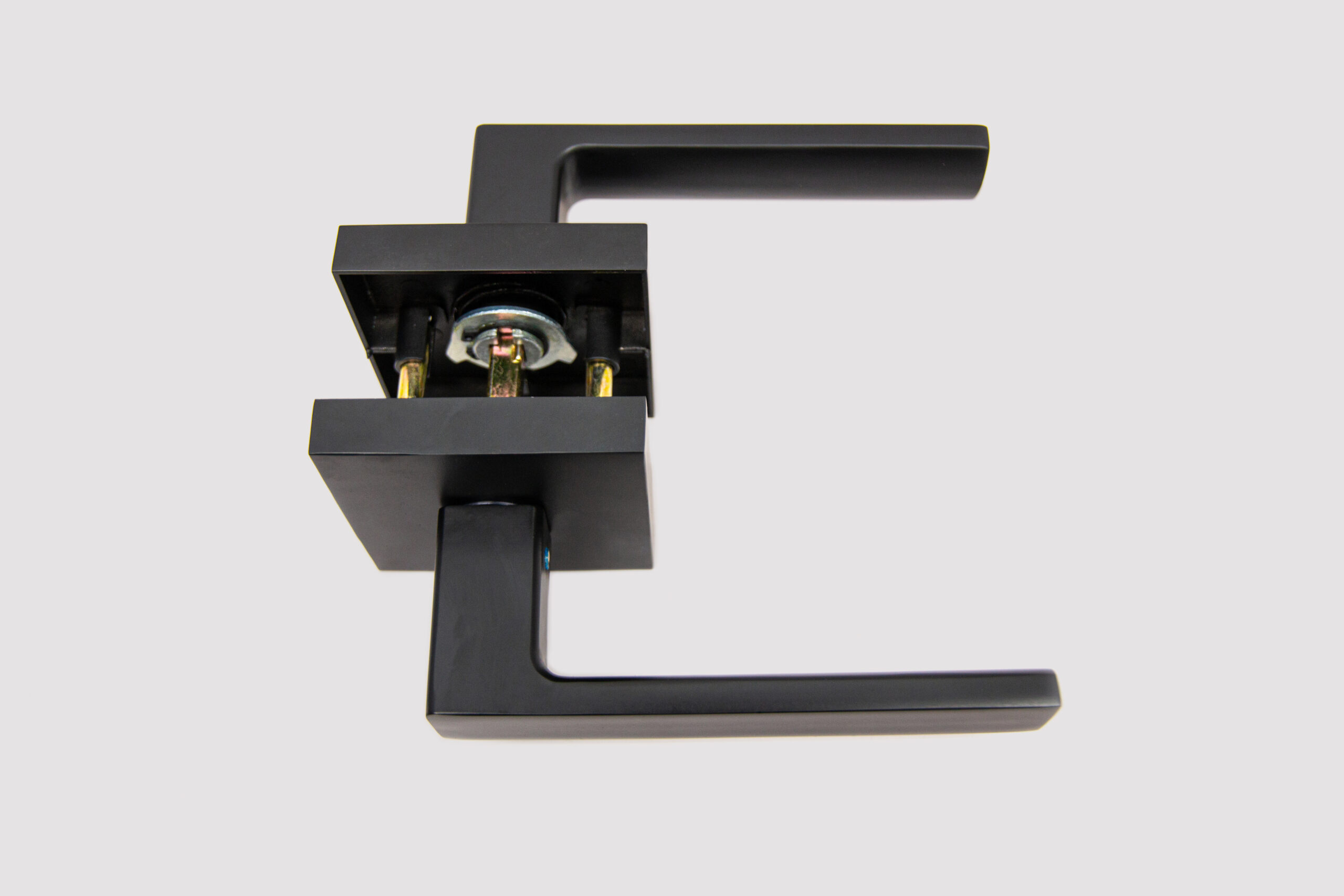

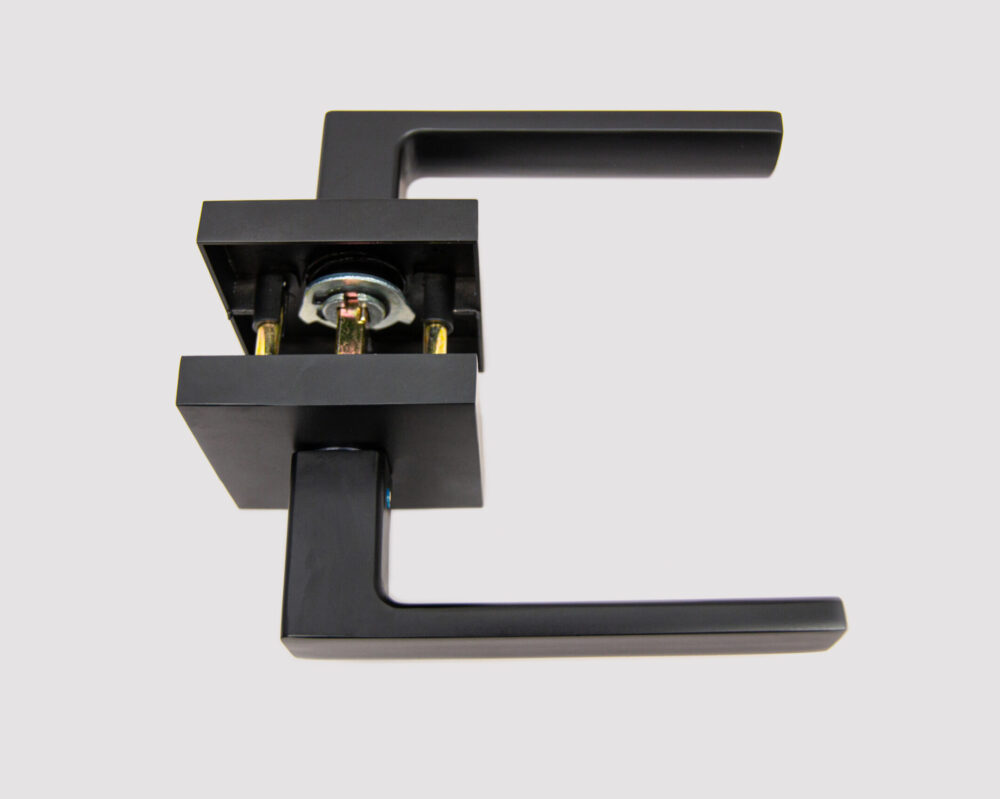

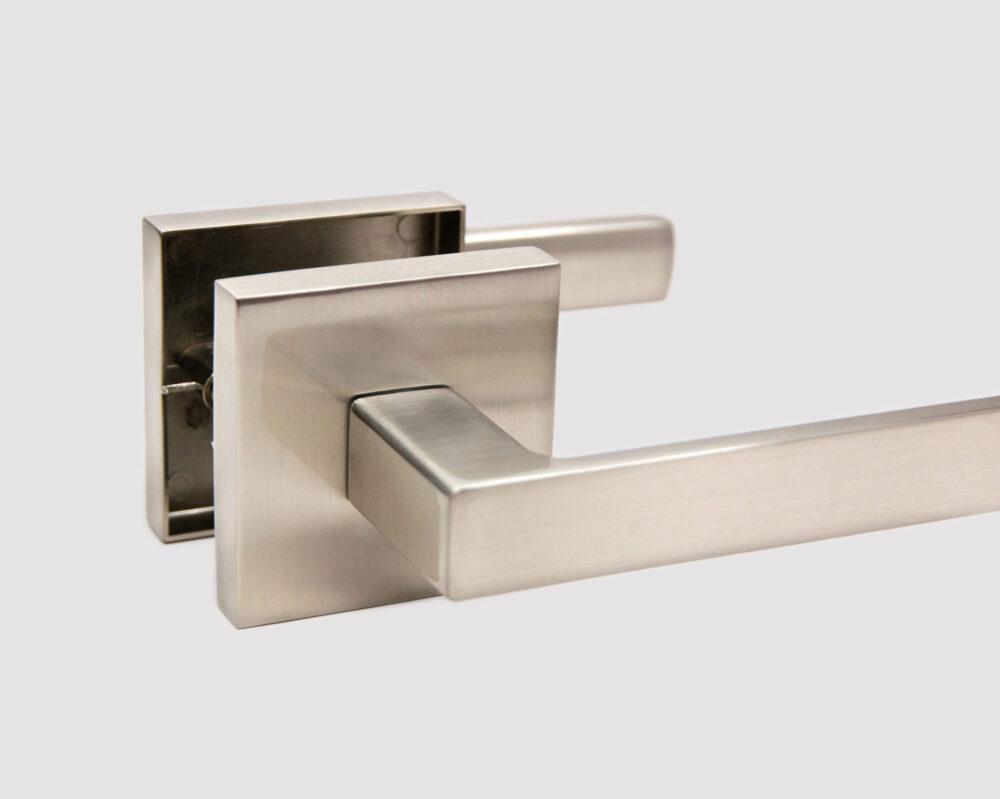

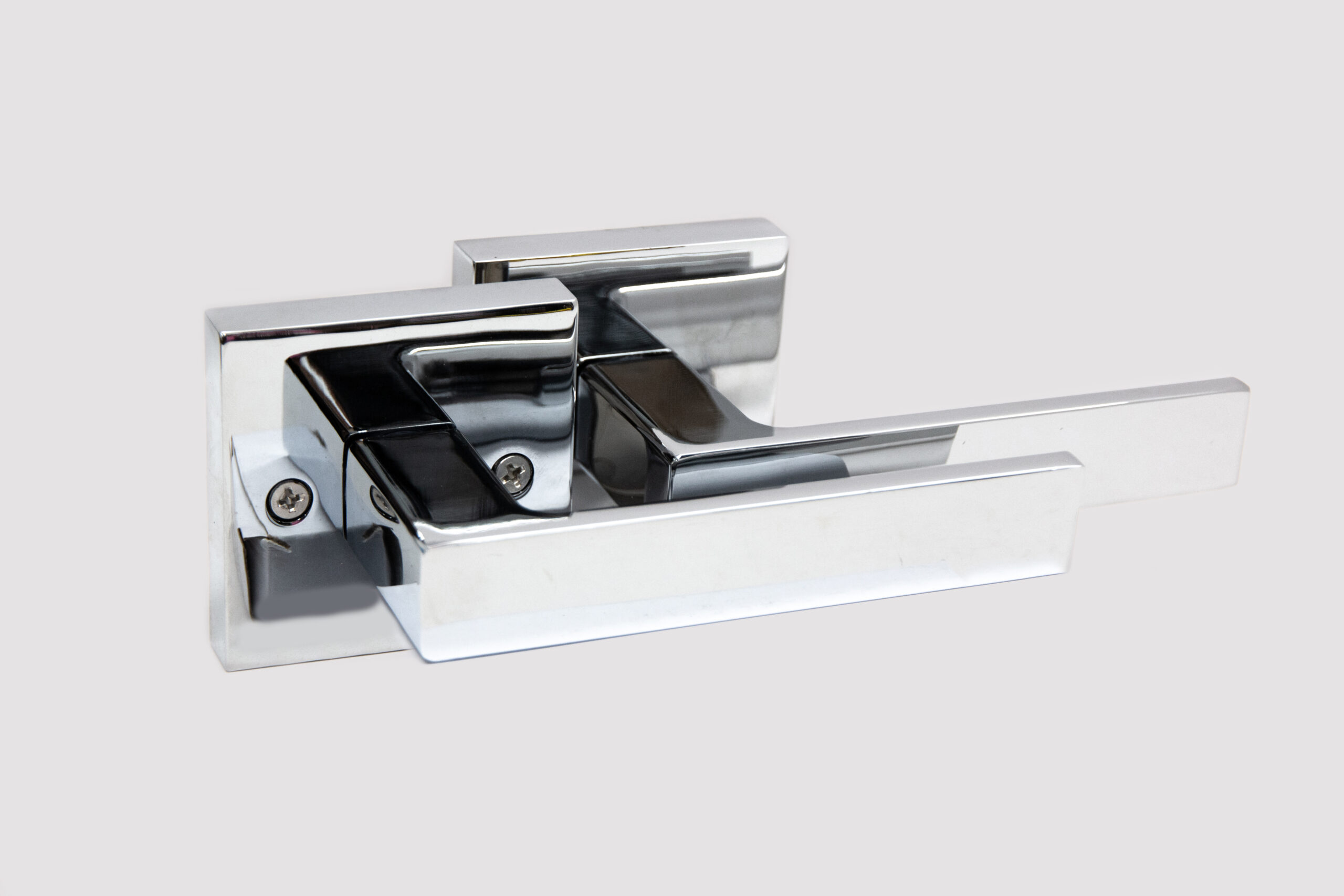

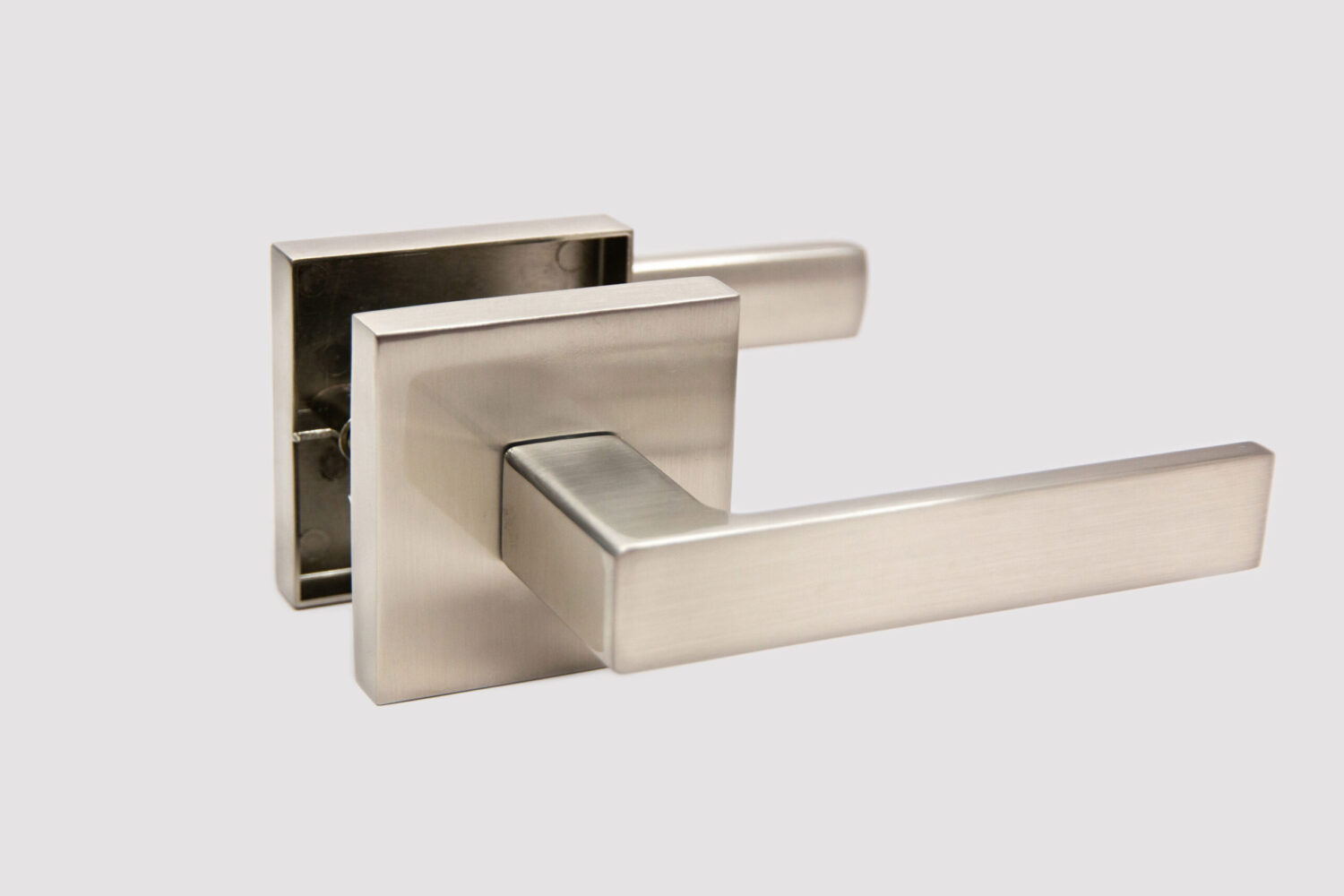

Nevada Door Handle Lever Set

Passage – for use on interior doors where a locking feature is not required (e.g. bedrooms or hallways).

Privacy – for use on interior doors where a privacy locking function is required (e.g. bathrooms).
Dummy – for use on interior door where a pull/push function is required (e.g. closet). Comes as set of 2 handles.

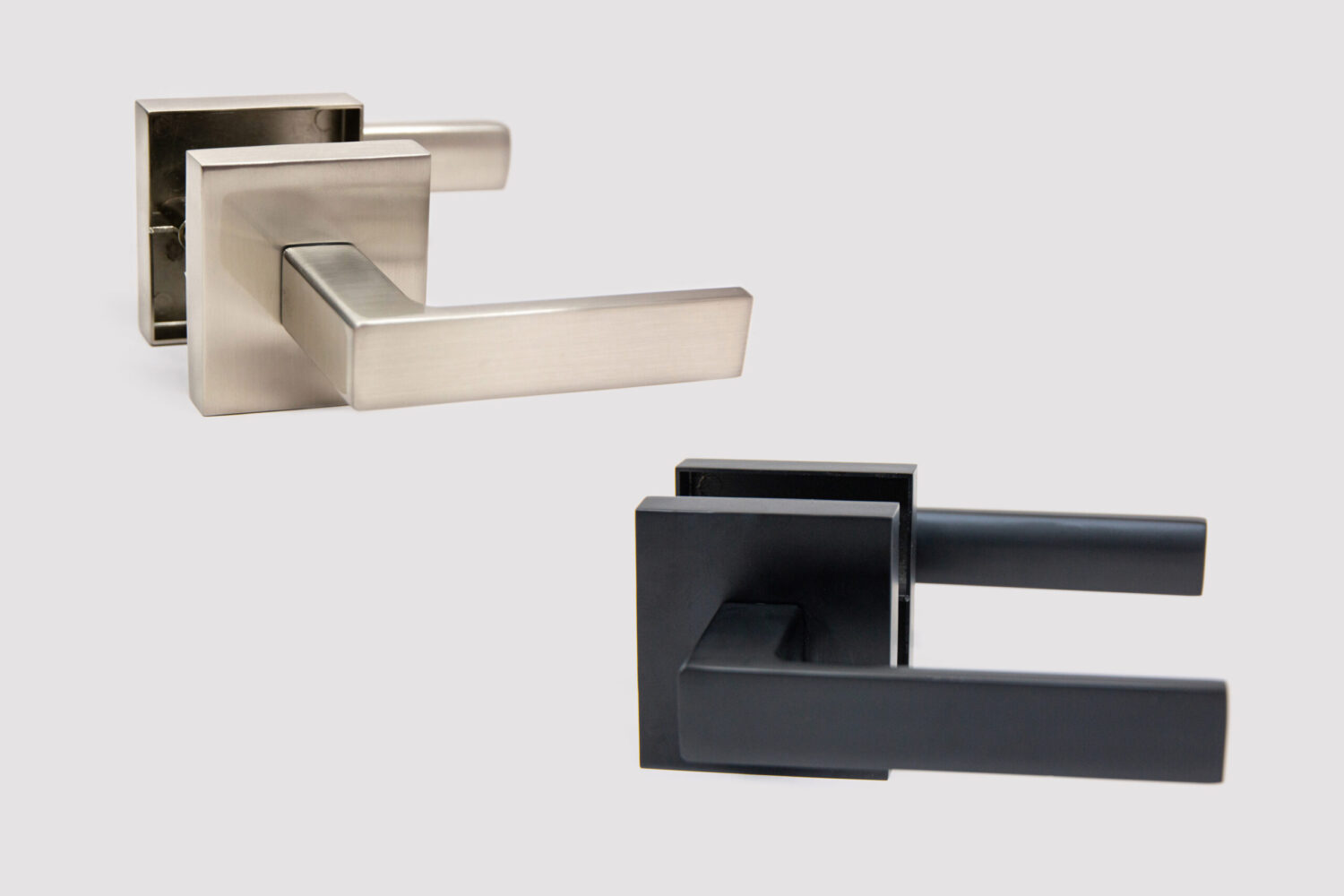

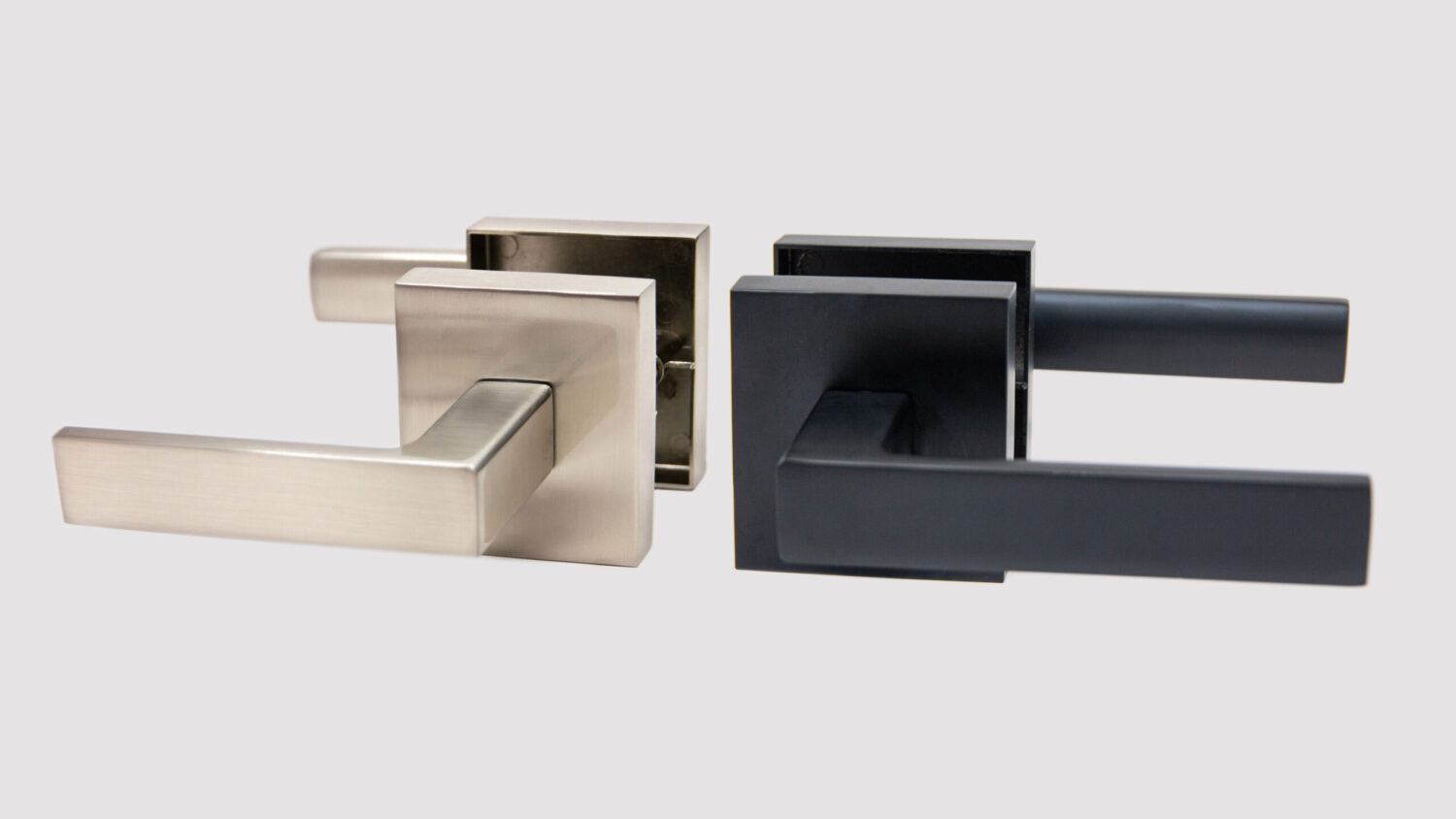

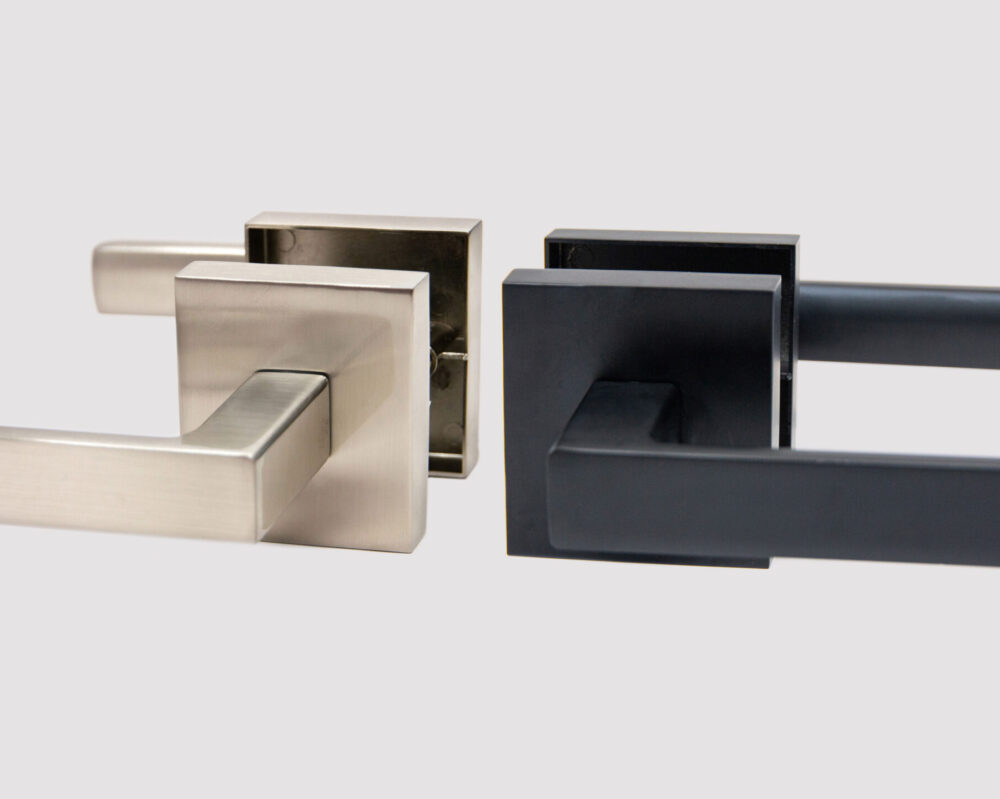

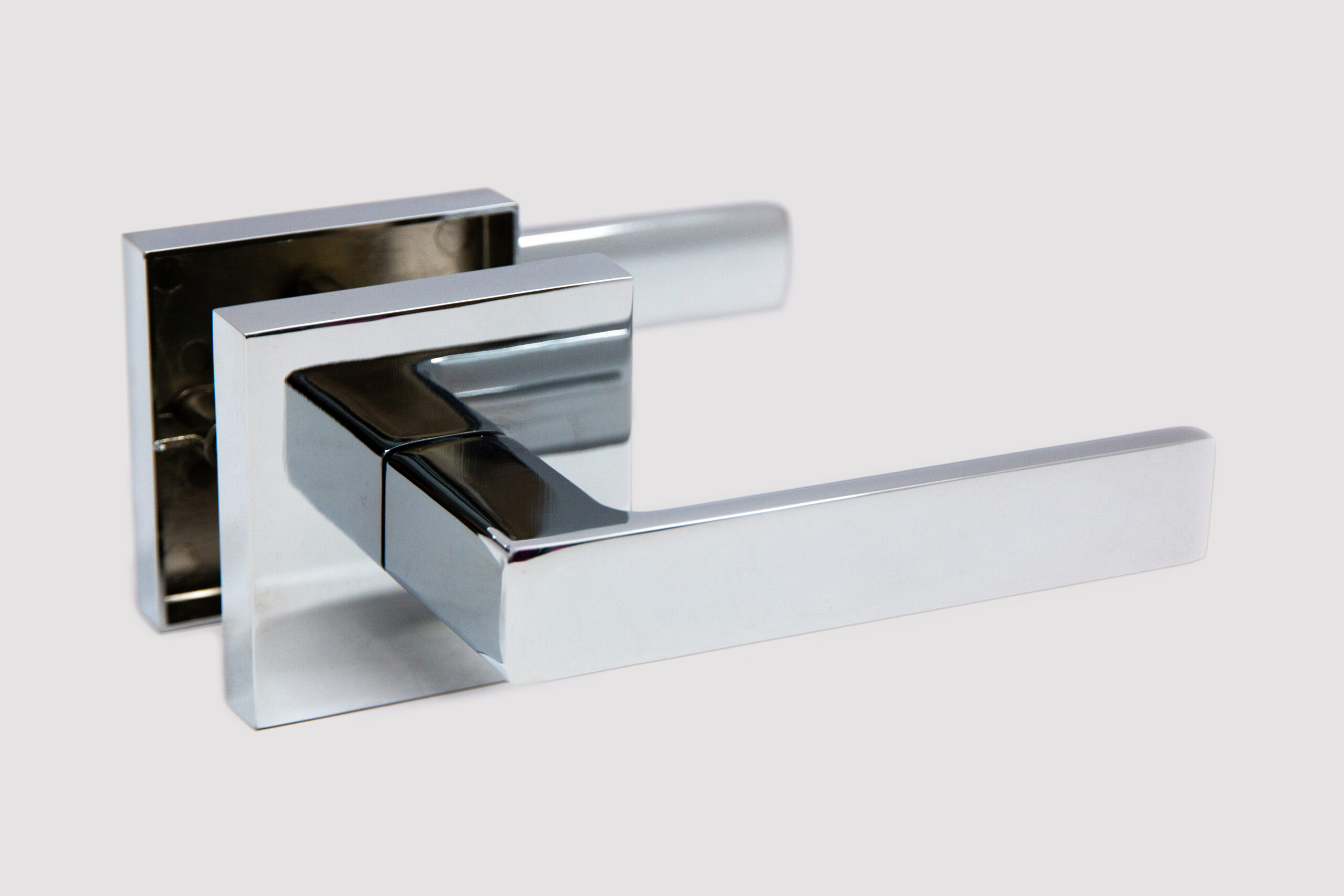

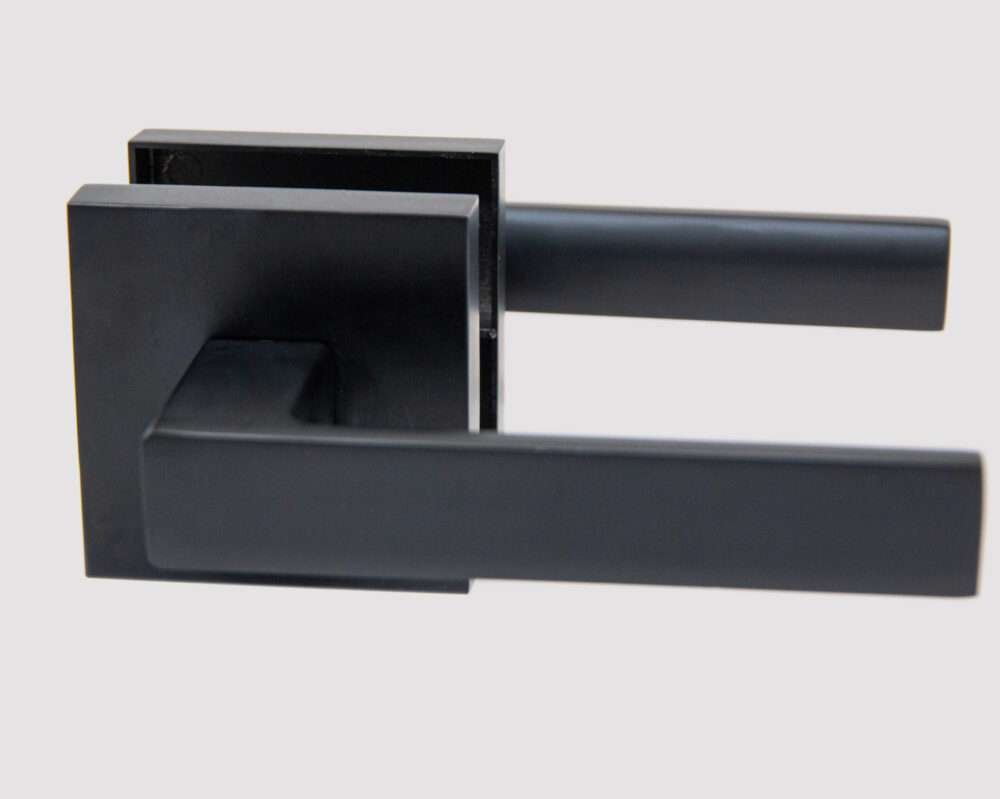

Available in following finishes:  Satin Nickel, Black Matte, Polished Chrome

Features:

• Features the drive-in latch to fit all standard door preparations.

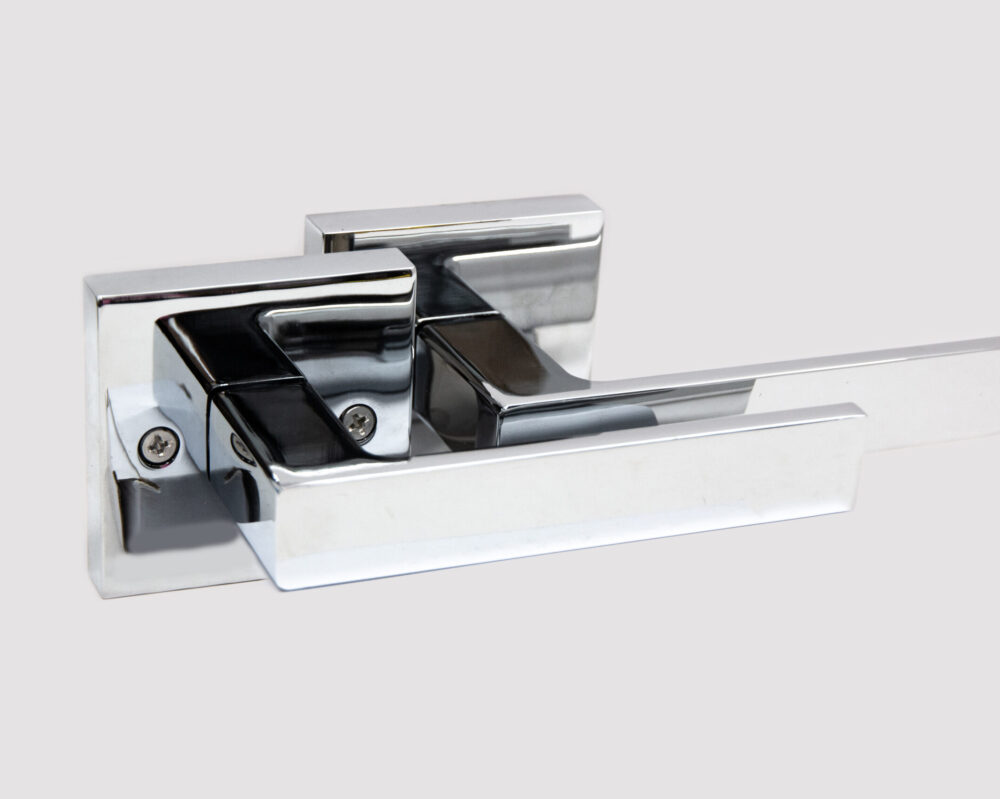

• Chrome finish handles come with adjustable latch.
• Solid Zinc Construction
• Handing is Easily Reversed
• Push Button for privacy function
• Strengthened Springs Ensure that the Lever Stays Level Over Time
• Flush Head Mounting Screws
• Includes Square Corner Strike
• Installation guide is included

Specifications:

• Fits standard door preparation
• Door Thickness: 1 3/8″(35 mm) or 1 3/4″(44,5 mm)
• Supplied with Square Corner and Drive-in Faceplates
• Backset is adjustable: 2 3/8″(60 mm) and 2 3/4″(70 mm)
• Bore Hole: 2 1/8″(54 mm)
• Cross Bore: 1″(25 mm)
• Handing: Reversible
• Grip Length: 4 3/4″ (121 mm)
• Projection: 2 1/8″ (54 mm)
• Square rosette size: 2 1/2″ x 2 1/2″ (65 mm x 65 mm)
• Weight: 1.65 lb (750 g)

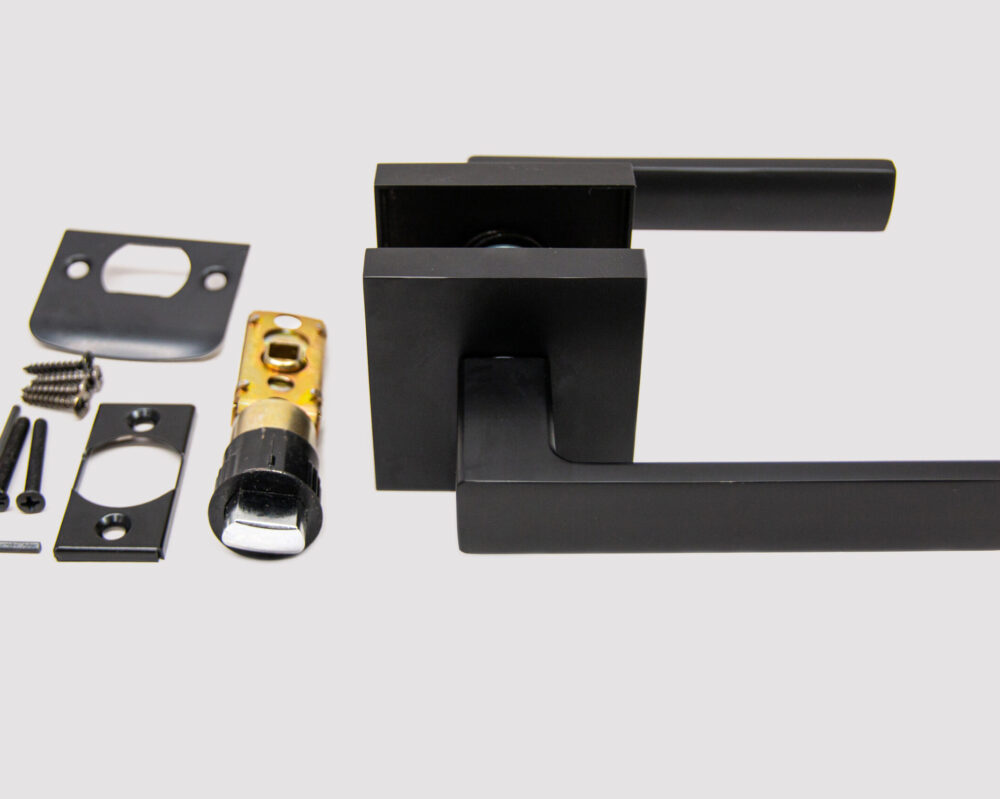

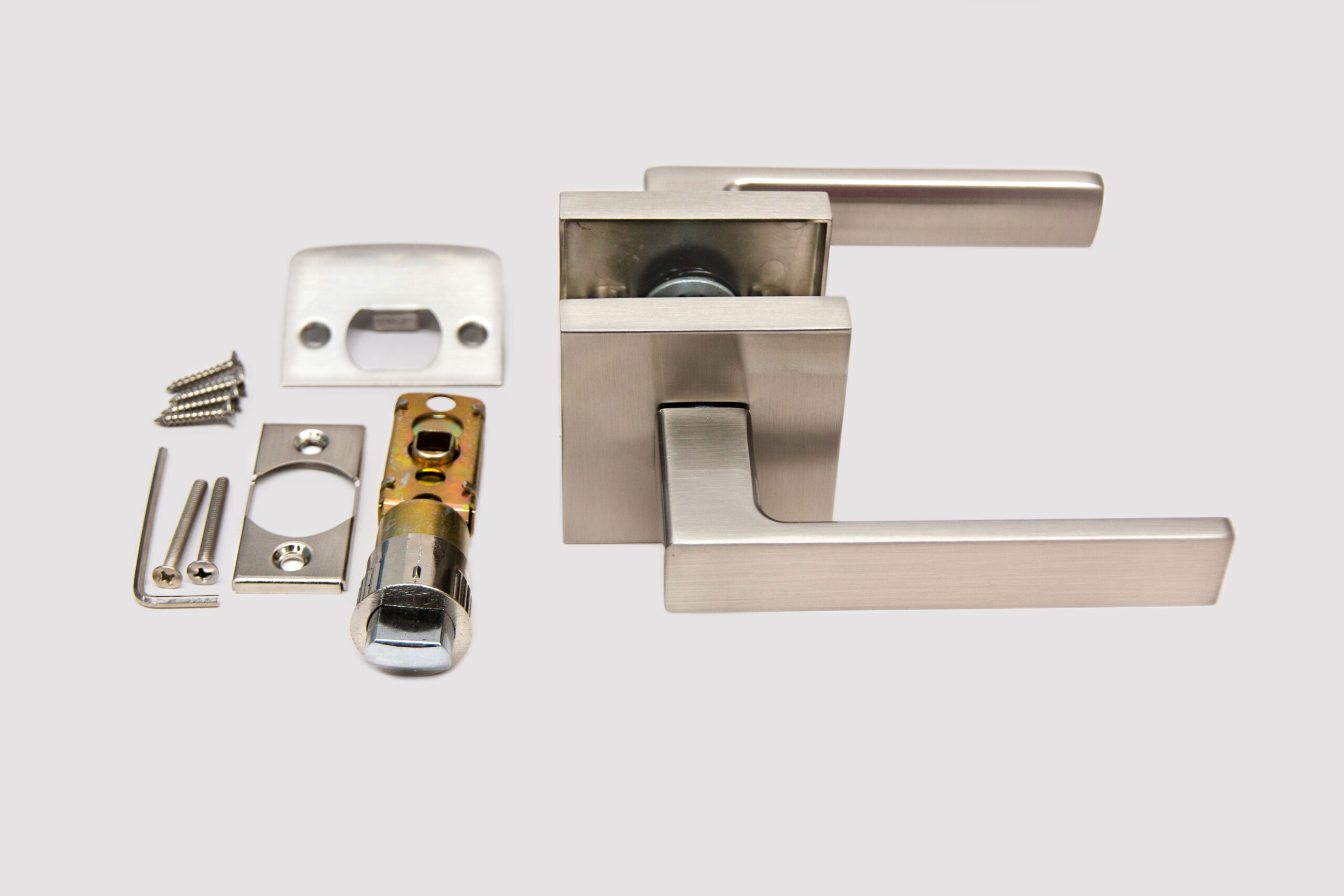

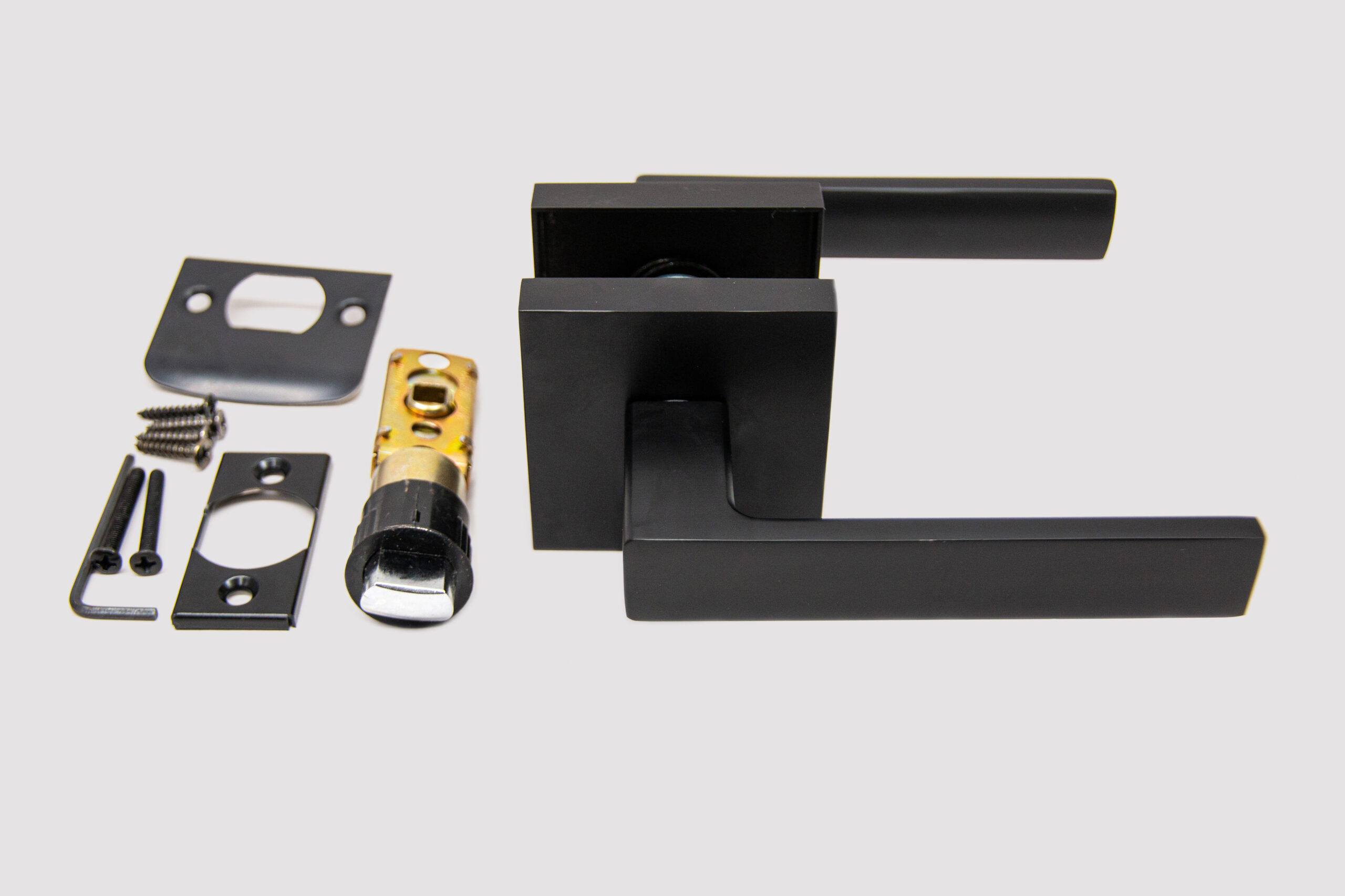

• Includes all required hardware for complete installation

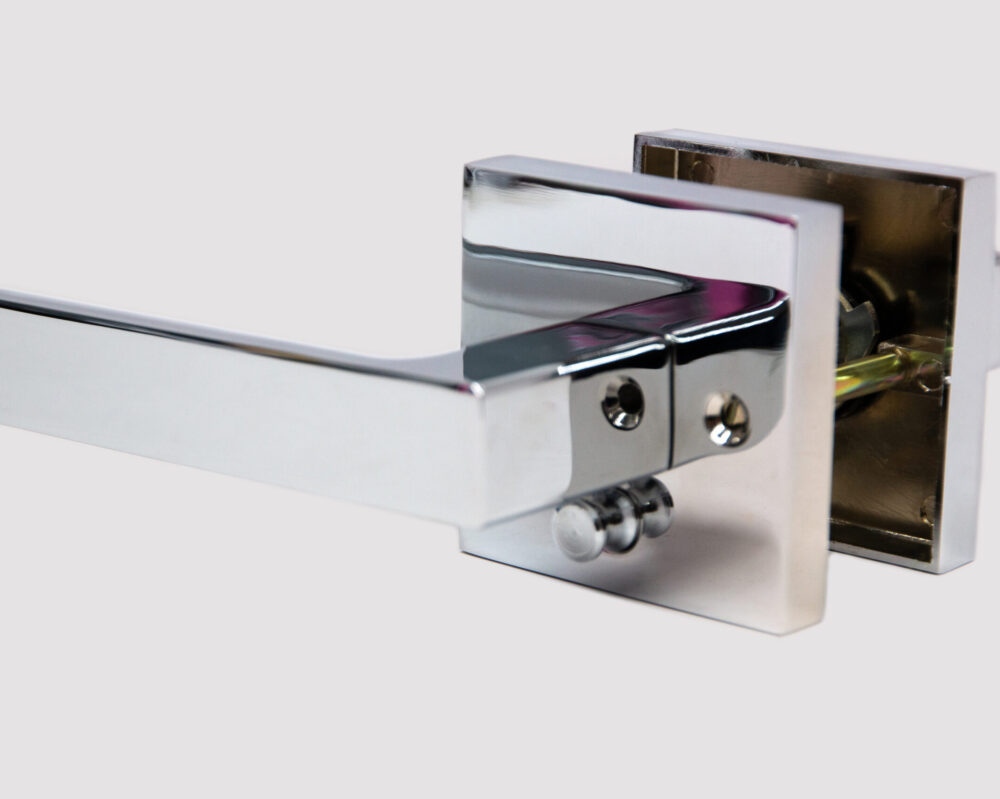

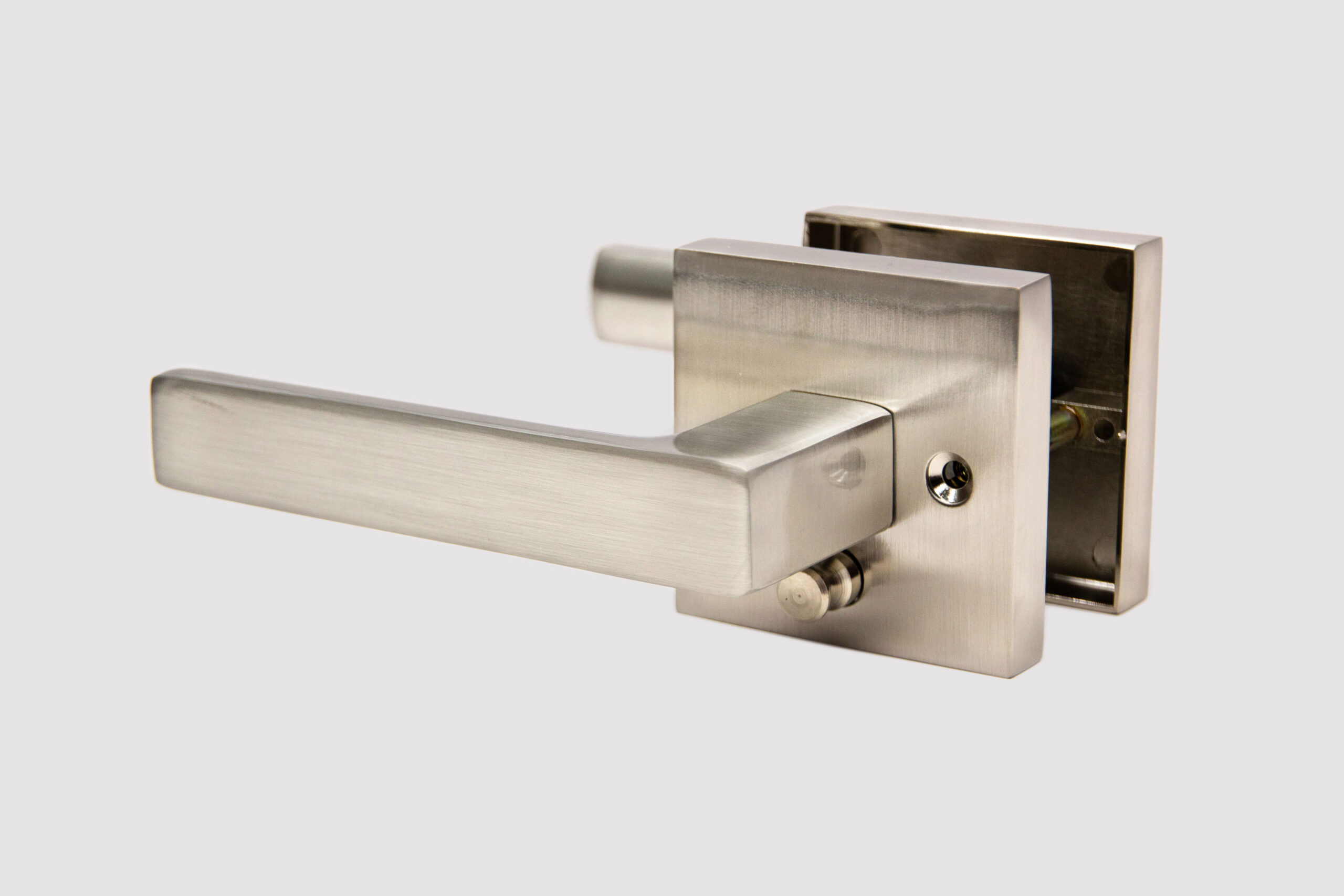

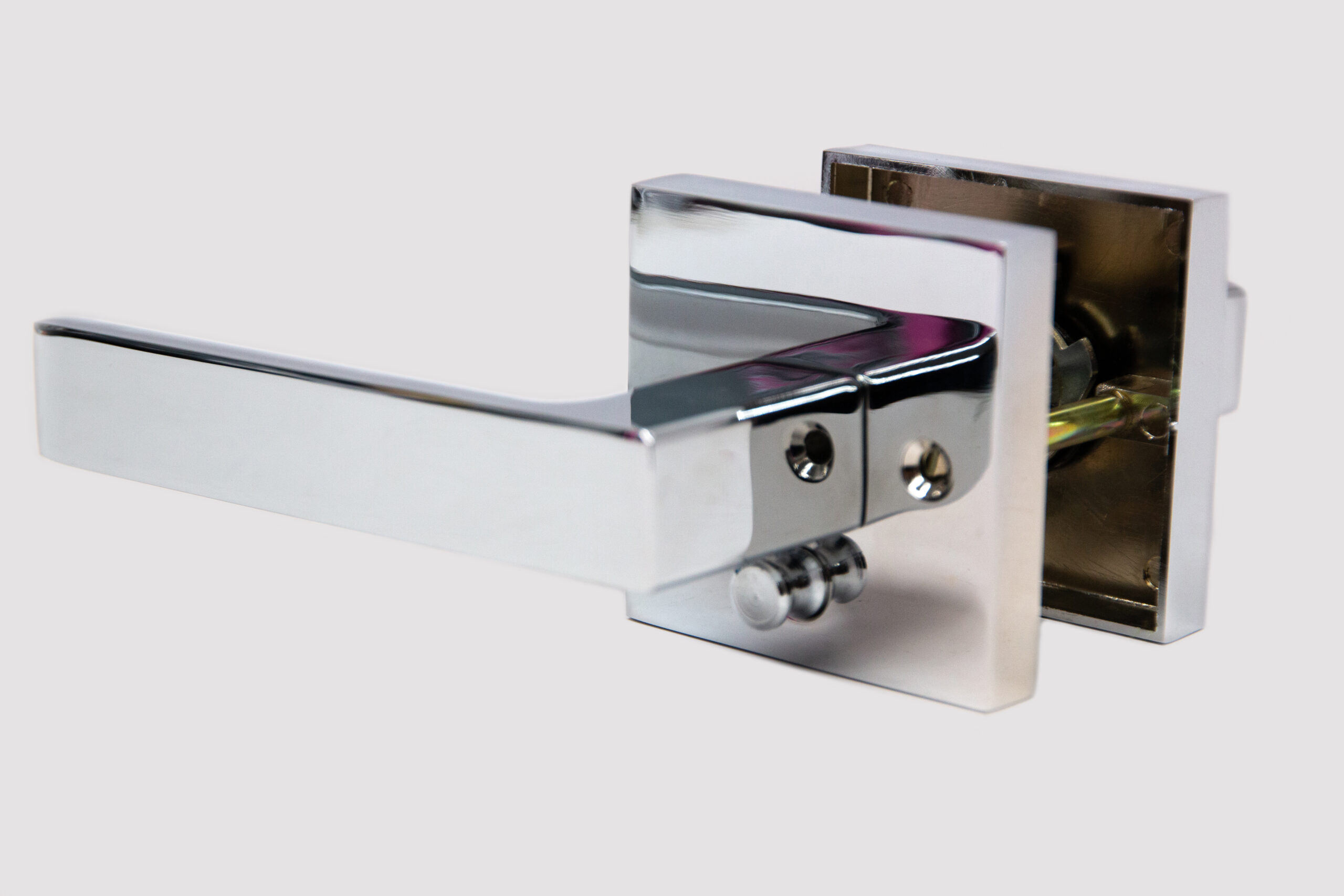

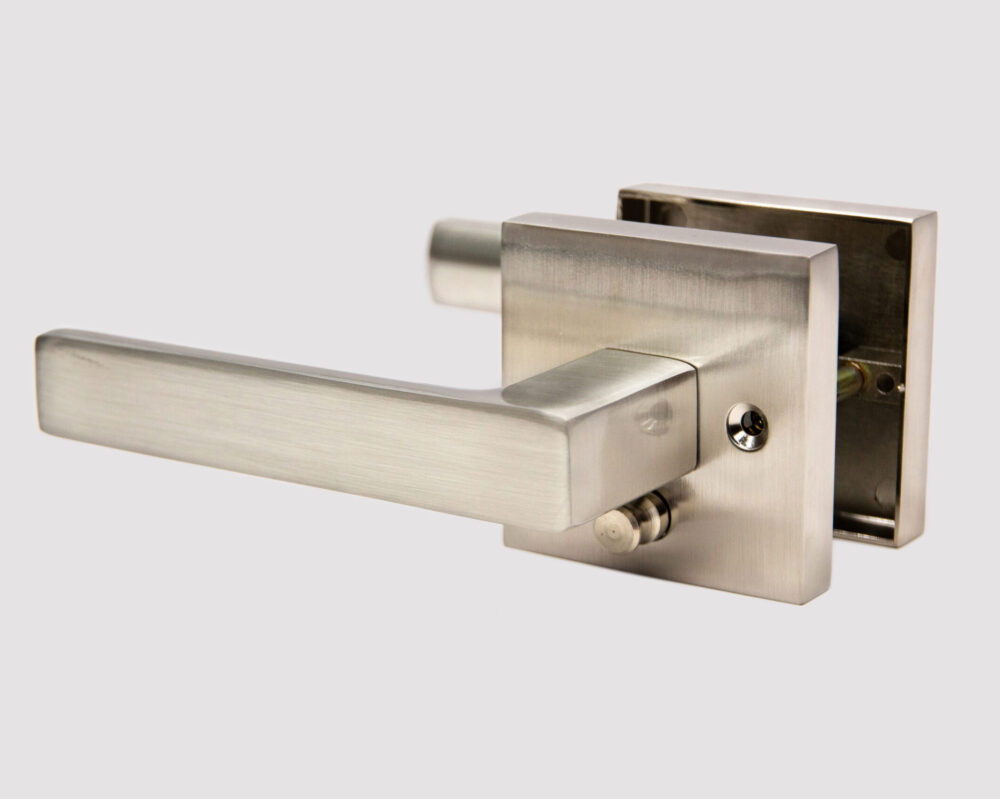

Privacy Function:

The latch bolt can be locked by pushing the button on the inside rosette. The exterior side features a small pin hole to unlock the leverset from the outside. Emergency Egress Function: Allows you to simply turn the lever to exit the room.
